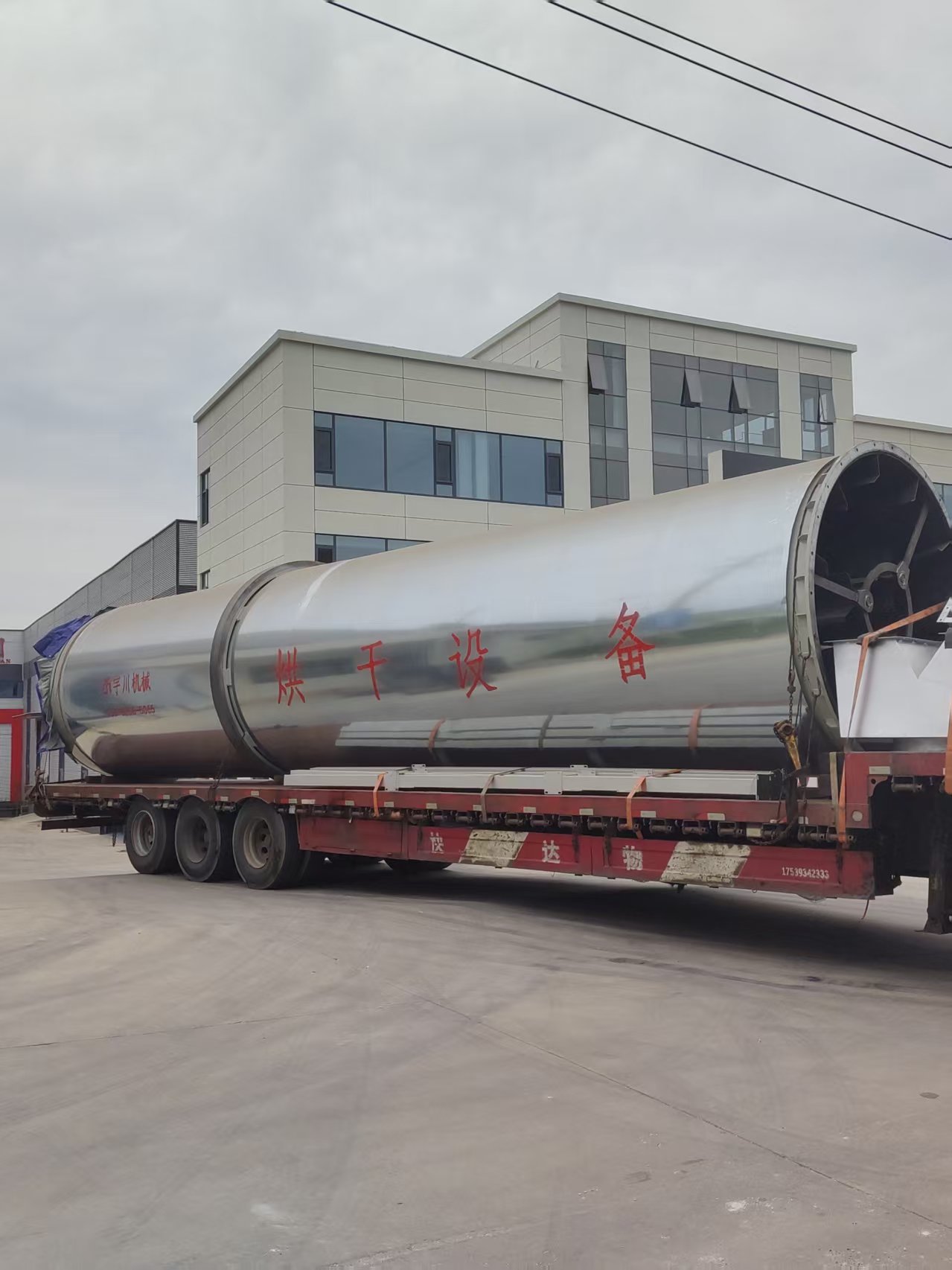

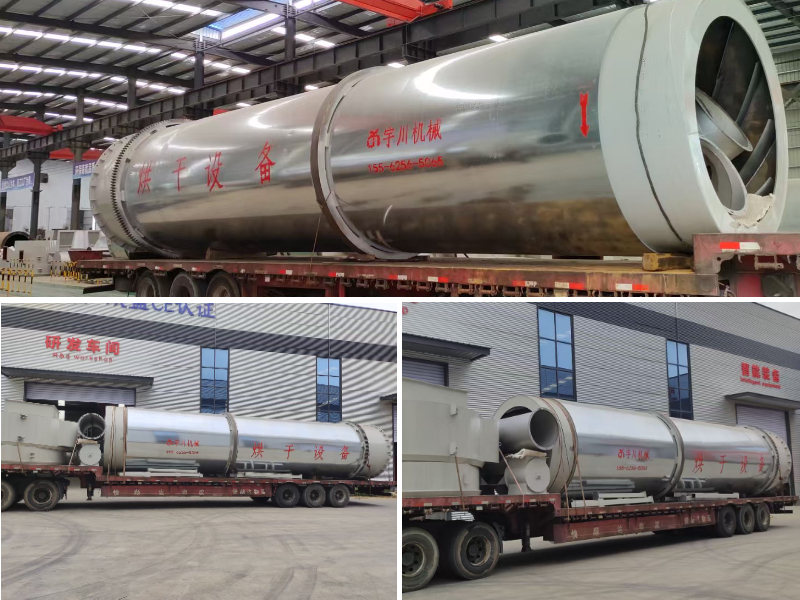

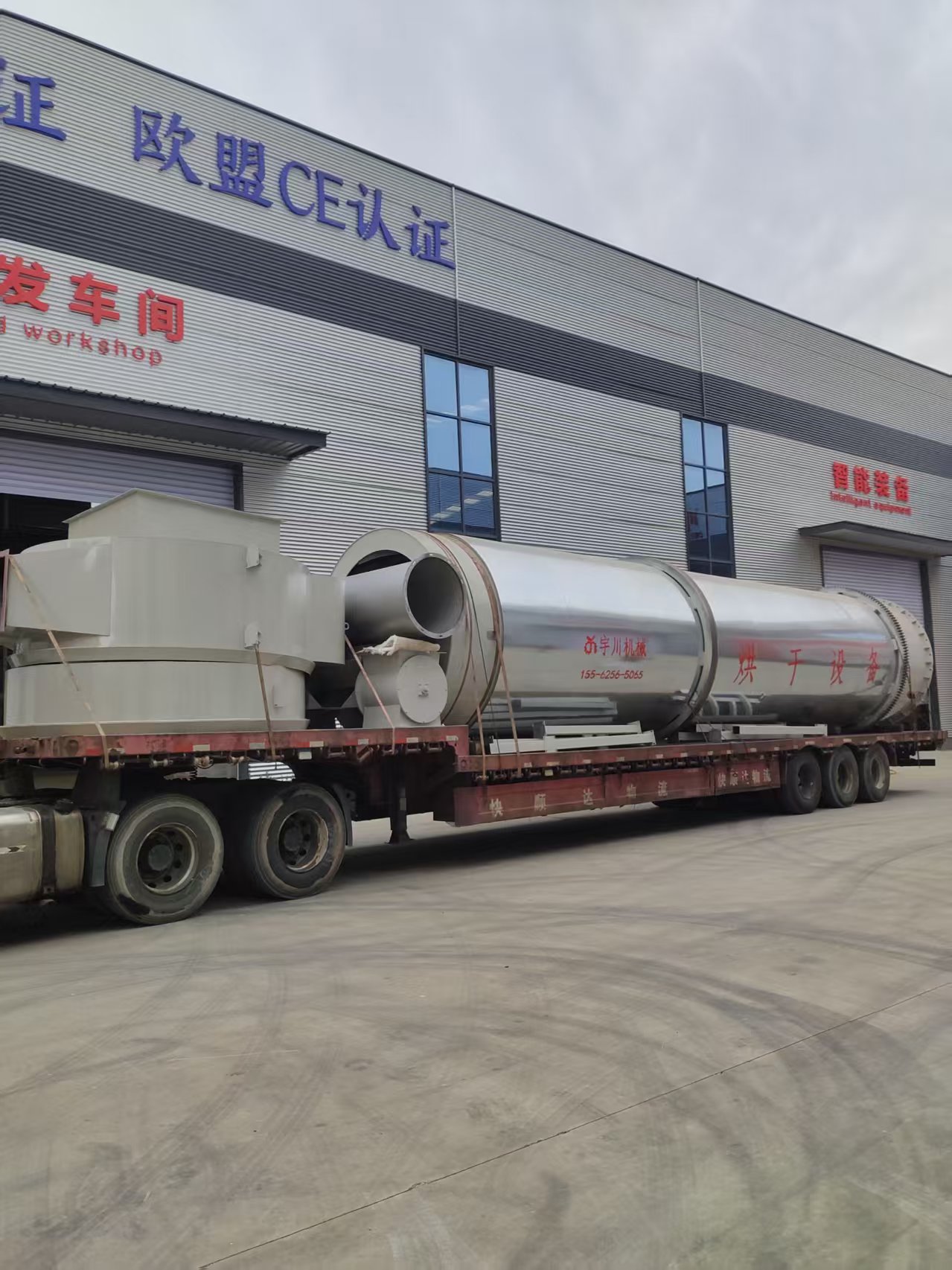

Chicken Manure Dryer
Customized Design: Engineered for high-moisture, high-viscosity chicken manure/organic fertilizer, precisely addressing processing challenges
Efficient Anti-Blocking: Secondary material lifting boosts efficiency, secondary crushing optimizes material, anti-adhesion devices eliminate blockages
One-Step Drying: Dries chicken manure from 70% moisture content to below 15% in a single pass, streamlining operations
High Output, Low Consumption: Meets demanding production standards while balancing capacity and energy efficiency
Durable and Corrosion-Resistant: Extensive stainless steel construction withstands chicken manure corrosion, extending equipment lifespan
Premium End Product: Multiple material-lifting and dispersing units ensure superior organic fertilizer quality post-drying
Introducing Our High-Efficiency Chicken Manure Dryer – Designed for High Moisture & High Viscosity Materials
Our Chicken Manure Dryer is specially engineered to tackle the challenges of drying high-moisture, high-viscosity organic materials like chicken manure. With innovative design and durable construction, this dryer delivers large-capacity, low-energy performance ideal for modern fertilizer production lines.
1. Innovative Design for Enhanced Drying Efficiency
This dryer features a secondary throwing zone that significantly improves heat exchange and drying efficiency. Additionally, a secondary crushing area optimizes material consistency, breaking up clumps for uniform drying.
2. Anti-Sticking Mechanism Prevents Clogging
Equipped with an advanced anti-sticking device, our Chicken Manure Dryer effectively prevents material buildup and blockage issues. This ensures continuous, stable operation with minimal downtime.
3. One-Pass Drying from 70% to Below 15% Moisture
Unlike conventional dryers, our system can reduce moisture content from up to 70% down to below 15% in a single process. This eliminates the need for repeated handling, saving both time and energy.
4. Large Capacity with Low Energy Consumption
Designed for high-output requirements, this dryer meets stringent production standards while operating with remarkably low energy consumption, making it both economical and environmentally friendly.
5. Corrosion-Resistant Stainless Steel Construction
Understanding the corrosive nature of chicken manure, our engineers have used generous amounts of stainless steel in key areas to enhance durability and longevity.
6. Specialized for High-Moisture Organic Fertilizer
This dryer is specially designed for high-moisture, high-viscosity organic fertilizers, ensuring optimal material flow and drying performance through internally installed throwing and breaking devices.
7. Rapid Moisture Evaporation Through Direct Heat Exchange
Hot air flows directly through the dryer drum, allowing quick and efficient moisture evaporation. The internal lifting plates ensure full exposure of materials to the hot air, maximizing drying speed.
Technical Specifications
Model | Evaporation Capacity (t/h) | Drive Power (kW) | Fan Power (kW) | Air-lock Discharger (mm/kW) | Remarks |
1.2*12 | 0.25-0.45 | 5.5 | 11 | 300/1.5 | Parameters may vary based on material properties
|
1.5*15 | 0.5-0.7 | 11 | 15 | 400/2.2 | |
1.8*18 | 1.0-1.5 | 15 | 22 | 500/3 | |
2.2*24 | 2.5-3.5 | 22 | 37 | 600/4 | |
2.5*24 | 2.5-4.7 | 22 | 45 | 600/4 | |
3.0*30 | 5.0-6.0 | 37 | 75 | 700/5.5or larger | |
3.5*30 | 6.5-8.0 | 45 | 90 | 700/5.5or larger |
