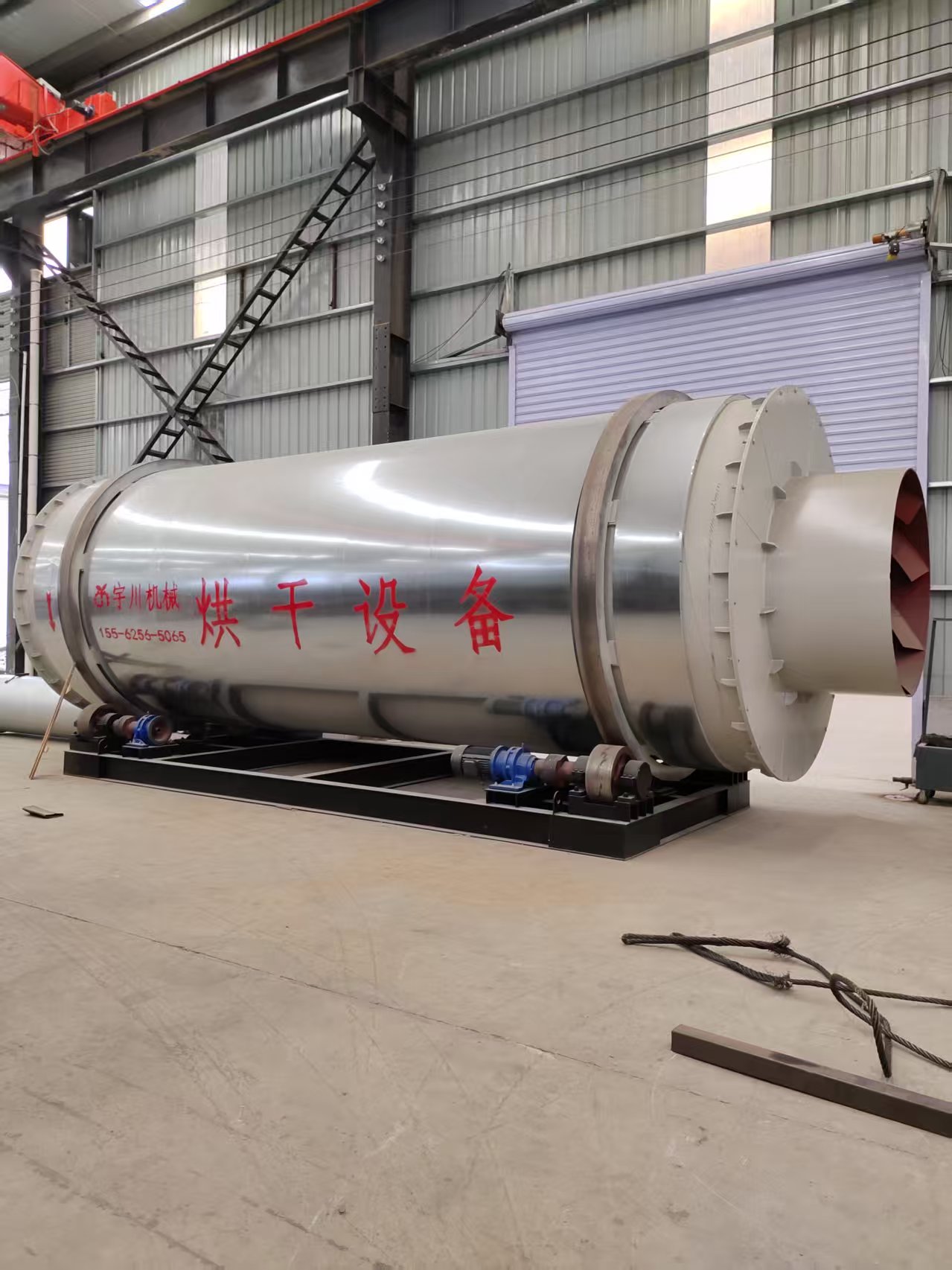

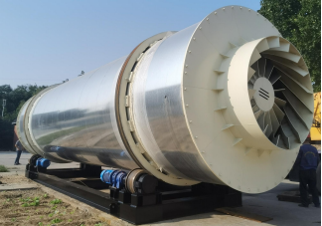

Cow Dung Dryer
1.Tailored for high-moisture cattle manure characteristics, advanced technology enables one-pass drying.
2.Rapid drying speed efficiently evaporates moisture, significantly reducing drying time.
3.Uniform drying ensures every batch achieves optimal dryness.
4.Comprehensive environmental protection system minimizes dust emissions during operation.
5.As a triple-pass dryer, it reduces drying costs and enhances product competitiveness.
This Cow Dung Dryer employs advanced technology specifically tailored to the characteristics of high-moisture cattle manure, enabling single-pass drying without multiple processing steps, significantly boosting drying efficiency. It's important to note that cattle manure typically has high initial moisture content, exhibits some stickiness, and due to undigested forage, has low bulk density while also being somewhat corrosive—challenges that ordinary drying equipment struggles to handle. However, Shandong Yuchuan's Cow Dung Dryer, with its specialized design, perfectly adapts to these material properties. It dries rapidly, efficiently evaporating moisture from the manure to shorten drying time, eliminating lengthy waits. Additionally, it ensures uniform drying, guaranteeing each batch achieves the ideal dryness level and preventing partial drying issues.
As a premium Cow Dung Dryer, Shandong Yuchuan's triple-pass Cow Dung Dryer excels in environmental performance. Equipped with a comprehensive environmental protection system, it significantly reduces dust emissions during operation, meeting eco-friendly standards and eliminating pollution concerns during manure processing.
Model | Evaporation Capacity (t/h) | Drive Power (kW) | Fan Power (kW) | Air-lock Discharger (mm/kW) | Remarks |
2.0*8 | 1.5-2.0 | 4*4 | 30 | 400/2.2 | Parameters may vary based on material properties |
2.2*12 | 2.0-3.0 | 4*4 | 55 | 500/3 | |
2.5*12 | 3.0-4.0 | 7.5*4 | 75 | 500/3 | |
2.8*8 | 3.5-4.5 | 5.5*4 | 75 | 600/3 | |
2.8*12 | 3.5-5.0 | 7.5*4 | 90 | 600/3 | |
3.0*8 | 4.5-5.5 | 7.5*4 | 75 | 600/3 | |
3.0*12 | 5.0-6.0 | 11*4 | 90 | 700/5.5or larger | |
3.2*8 | 5.5-6.5 | 7.5*4 | 90 | 700/5.5or larger | |
3.2*12 | 7.0-9.0 | 11*4 | 110 | 700/5.5or larger |
Many ask: How to choose a Cow Dung Dryer? Which dryer is best for drying cow manure? For materials like cow manure—high in moisture yet low in economic value—the Shandong Yuchuan Three-Pass Cow Dung Dryer is the ideal choice. This Cow Dung Dryer utilizes advanced technology, featuring three concentric cylinders of varying diameters nested together. This design distributes the manure material across three distinct chambers, exposing it to different temperatures and heat levels. Within each cylinder, heat exchange occurs through a unique thermal conduction mechanism. This design significantly enhances the dryer's thermal insulation, minimizes heat loss, reduces energy consumption, and lowers drying costs. With reduced costs, subsequent production of related products using the dried manure can effectively boost product competitiveness.
In terms of structure and performance, this Cow Dung Dryer offers numerous advantages. As a high-efficiency modular triple-drum unit, its compact design occupies only half the footprint of a single-drum machine with equivalent output. This significantly saves floor space and reduces land investment costs. The streamlined production line configuration conserves land resources, representing substantial savings for enterprises. Moreover, this Cow Dung Dryer operates reliably with low energy consumption and high thermal efficiency, delivers excellent drying results, and facilitates automation with minimal operator requirements, further reducing labor costs.
Moreover, its innovative three-layer design allows materials to undergo three return passes within the cylinder. This extended residence time ensures thorough drying while enhancing internal heat exchange, thereby reducing energy consumption and aligning with energy-saving principles.
