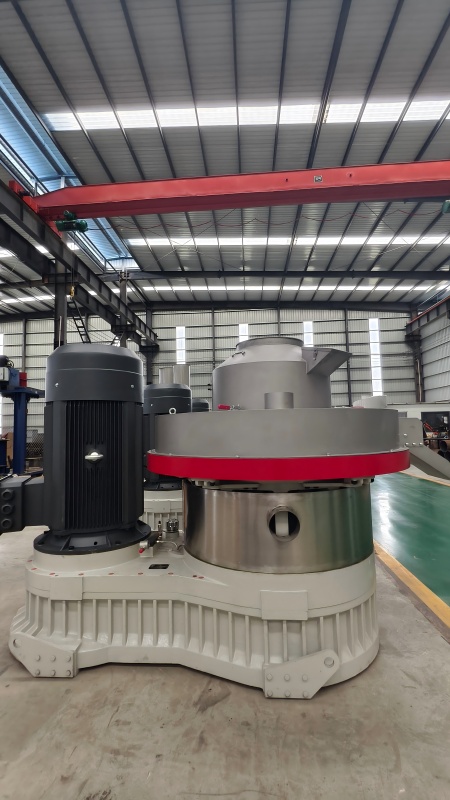

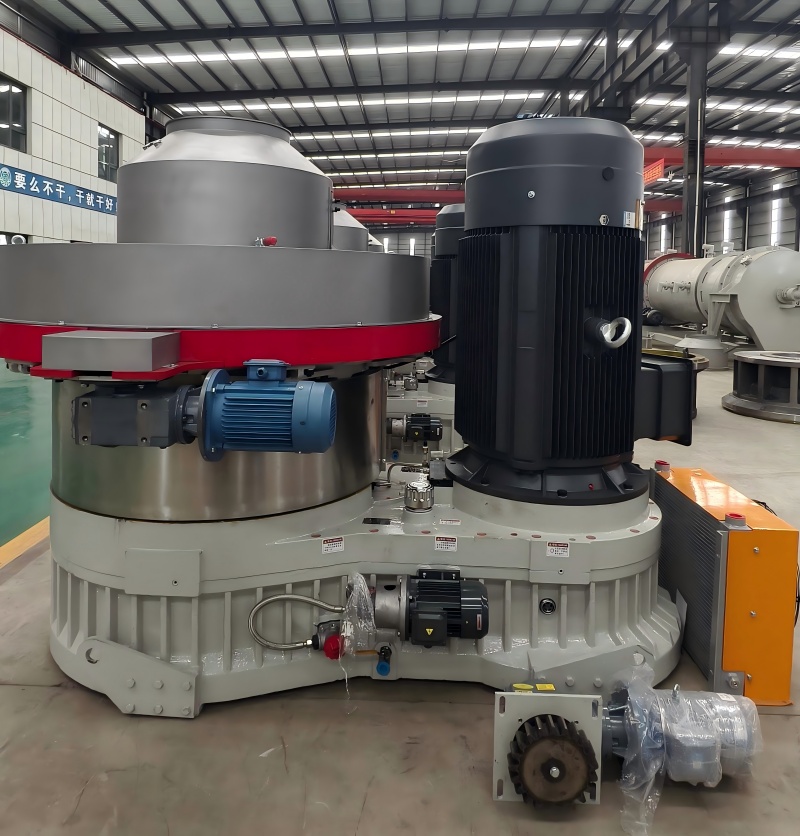

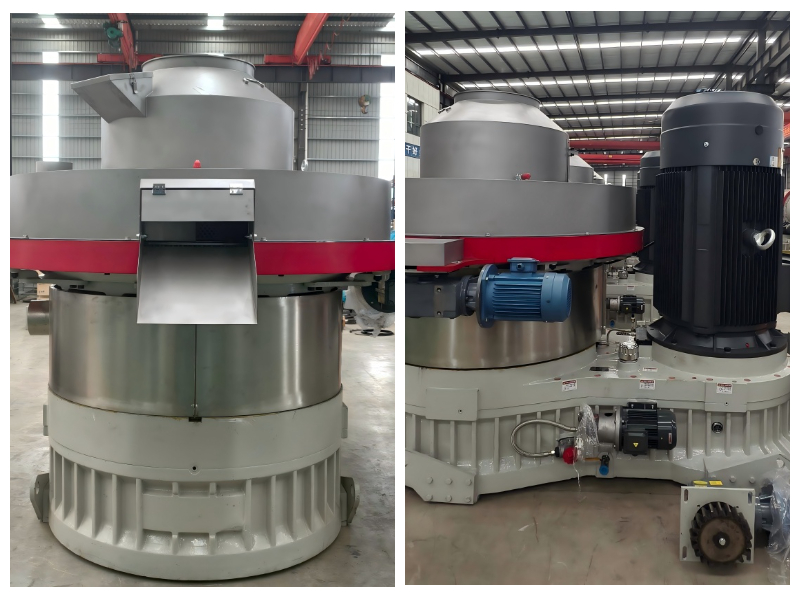

Rice Husk Pellet Machine
Rice husk biomass pellet mill has significant advantages. It can efficiently deal with rice husk, an agricultural waste, and convert the rice husk that was originally burned or landfilled to be utilized, and the rice husk has wide sources and low cost, which can greatly reduce the input of raw materials. The calorific value of its output pellet fuel is 3000-4000 kcal/kg, which is highly efficient in combustion, less soot, and can be used to replace coal and firewood for home heating, industrial boilers and other scenarios; the density is 1.1-1.3g/cm³, which is convenient for storage and transportation, and saves logistics costs. After treatment, it can also be used as feed filler, supplementing crude fiber and reducing breeding costs. environmentally friendly, harmful gas emissions during combustion are much lower than coal, carbon emissions close to “carbon neutral”, in line with environmental policies, but also to avoid the rice husk incineration pollution and landfill occupancy, to help the agricultural circular economy.
Principle of operation
Pre-treatment of raw materials: rice husk is first cleaned to remove impurities and dirt to ensure the quality of the final pellets. As the moisture content of rice husk is usually high, it needs to be dried to reduce the moisture to less than 15%, so as to improve the density and calorific value of the pellets. Next, the dried rice hulls are crushed into small particles of specific size using a pulverizer to prepare for the pressing process. Pressing: Inside the pellet mill, the pre-treated rice husk enters the compression system. Under high temperature and high pressure, the wood fiber inside the rice husk is destroyed, the water evaporates, and the material gradually becomes dense. At this time, the lignin in the rice husk is activated and acts as a natural binder. Under the strong pressure of the pressure rollers and molds, the rice husk is squeezed into the mold holes and shaped into pellets of uniform size and regular shape. Generally, the diameter of biomass pellets is 6 - 12 millimeters, and the length can be adjusted according to demand.
Product Use
Pellet Fuel: The calorific value of rice husk pellet fuel can reach 3000 - 4000 kcal/kg, with high efficiency and full combustion, and very low smoke emission. It can be widely used in home heating to provide a warm and comfortable environment for families; in the field of industrial boilers, it can efficiently supply heat to meet the demand for heat energy in industrial production; and it can also be used in biomass power generation to contribute green energy to the power supply. Moreover, the density of the pellet fuel is about 1.1 - 1.3g/cm³, and its compact size greatly reduces the storage space and transportation cost. Feed filler: After special treatment such as crushing and mixing nutrients, rice husk pellets can be used as filler for livestock feed. It can supplement the necessary crude fiber for livestock, promote livestock digestion, and at the s
ame time, reduce feed costs and improve the economic benefits of farming.
Pellet Mill Product Parameters：
| Model | YC-560 | YC-700 | YC-850 | YC-850 |
| Main motor power | 132KW | 160KW | 250KW | 280KW |
| Output | 1.5-2T | 2-2.5T | 3.5T | 4T |

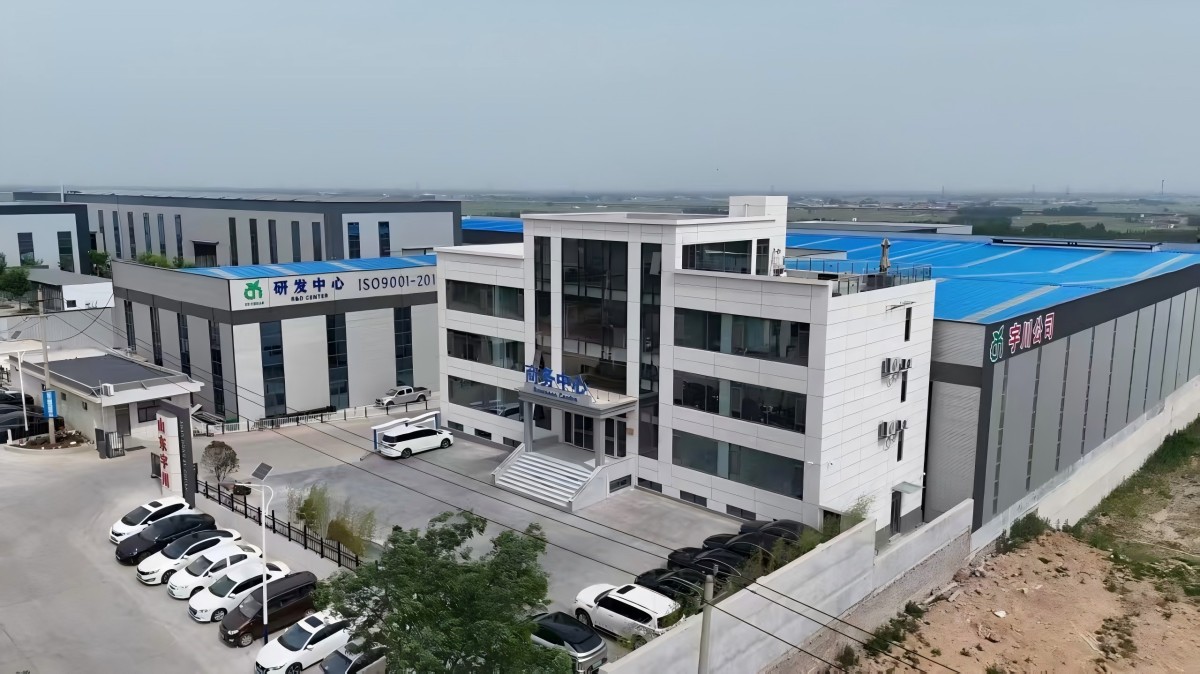

Company Profile
The predecessor of the company Jinan Xinshan Machinery Equipment Factory was established in 2010, and in 2016, Jinan Yuchuan Environmental Protection Equipment Co. Focusing on biomass, agriculture, mining, chemical industry, feed, organic fertilizer and other industrial drying production line equipment R & D and production (such as medium and large-scale drum drying equipment, double drum / three drum / multi-channel high efficiency and energy-saving drying equipment, vertical ring die pellet mill, crusher, crusher, biomass thermal equipment, etc.) Covering the country's 30 + provinces and municipalities, exported to Southeast Asia, Africa and other 10 + countries, the cumulative total of services to more than hundreds of customers.
