Rice Husk Pellet Machine
High Raw Material Adaptability
Efficiently processes various straw types including wheat straw and rice straw, with abundant and low-cost raw material sources.
Outstanding Production Efficiency
Automated continuous operation enables single production lines to achieve daily output of several tons, significantly reducing labor costs.
Superior Product Quality
Features uniform pellet density and excellent combustion/usage stability, meeting environmental fuel/feed standards.
Energy-Efficient and Environmentally Compliant
Low equipment energy consumption aligns with green manufacturing requirements.
Controllable operational costs, durable core components, and simple daily operation ensure high cost-effectiveness over extended use.
Product Overview
The rice husk pellet mill is a purpose-built device for agricultural waste recycling, which efficiently compresses rice husks into high-density biomass pellet fuel to support environmental protection and energy regeneration.
Working Principle
Dried rice husks are fed into the granulation chamber via the feeding system, extruded into shape by pressing rollers and ring die, cut into standard pellets by a cutter, and cooled to become finished products.
Structure & Material
Core Transmission:
Utilizes heavy-duty reducers and high-strength hardened gears to ensure smooth and powerful operation under heavy loads.
Main Body Material:
Feed and discharge housings along with dust covers are constructed from stainless steel for corrosion resistance and easy cleaning.
Key Components:
The main shaft and bearing housing undergo specialized tempering treatment, achieving high hardness that significantly extends equipment service life.
Applications
Biomass energy production (fuel for power generation & heating)
Agricultural waste recycling
Livestock/aquaculture feed raw material processing
Seedling substrate & organic fertilizer carrier production
Installation & Usage
Add gear oil before starting, grind the new die with mixed oil; feed dry and impurity-free rice husks through the feeding system, adjust the pressure roller gap as needed, and collect the finished products after cutting and cooling.
Supply & Service
Factory direct supply with bulk customization available
Professional export packaging for secure transportation
After-sales technical support and operational training to ensure long-term stable equipment operation
Parameters
Modle | YC-560 | YC-700 | YC-850 | YC-850 |
Main motor power | 132KW | 160KW | 250KW | 280KW |
yield | 1.5-2T | 2-2.5T | 3.5T | 4T |
Company Qualifications

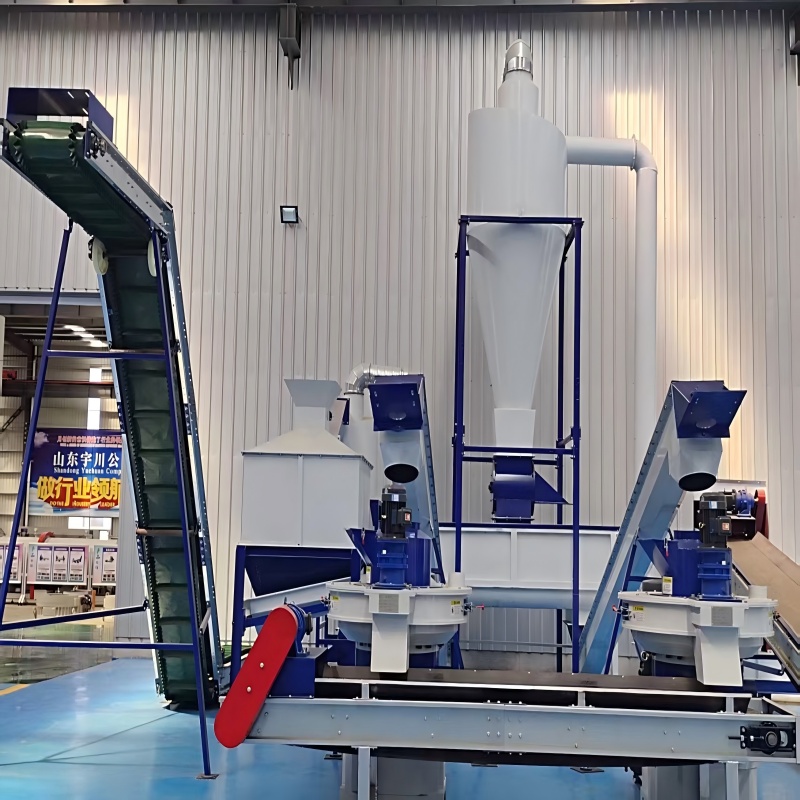

Pellet Machine Production Line
