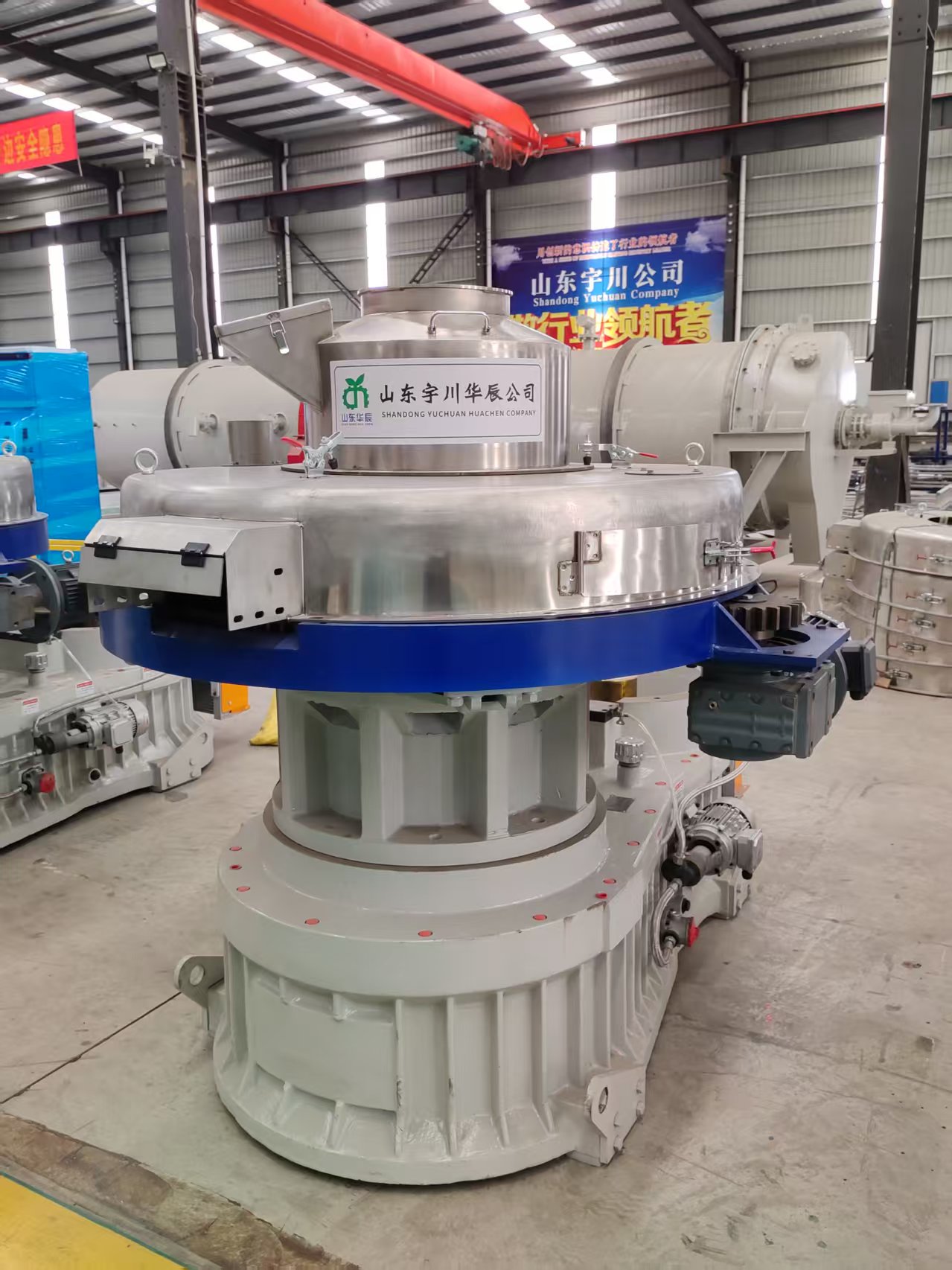

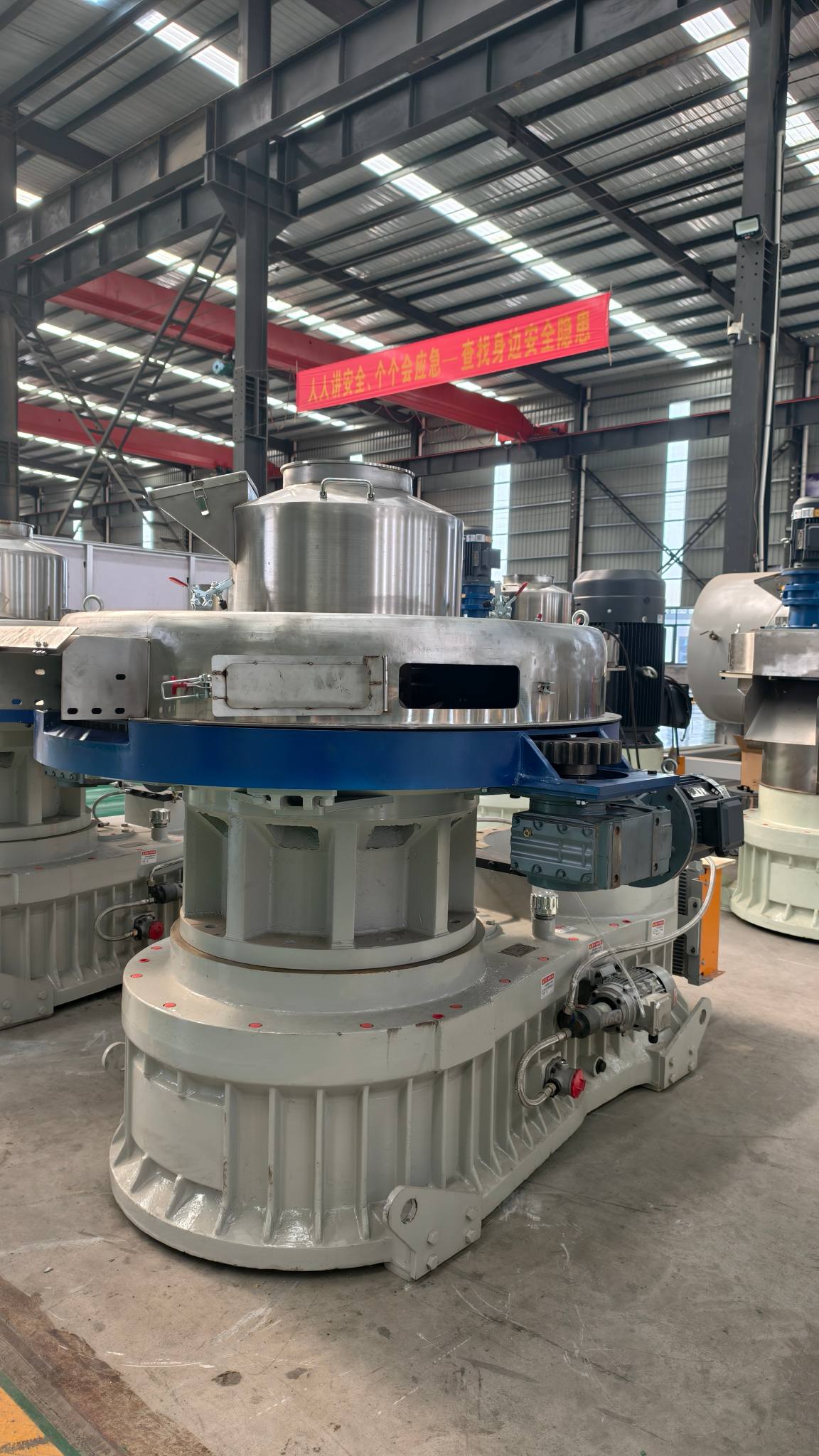

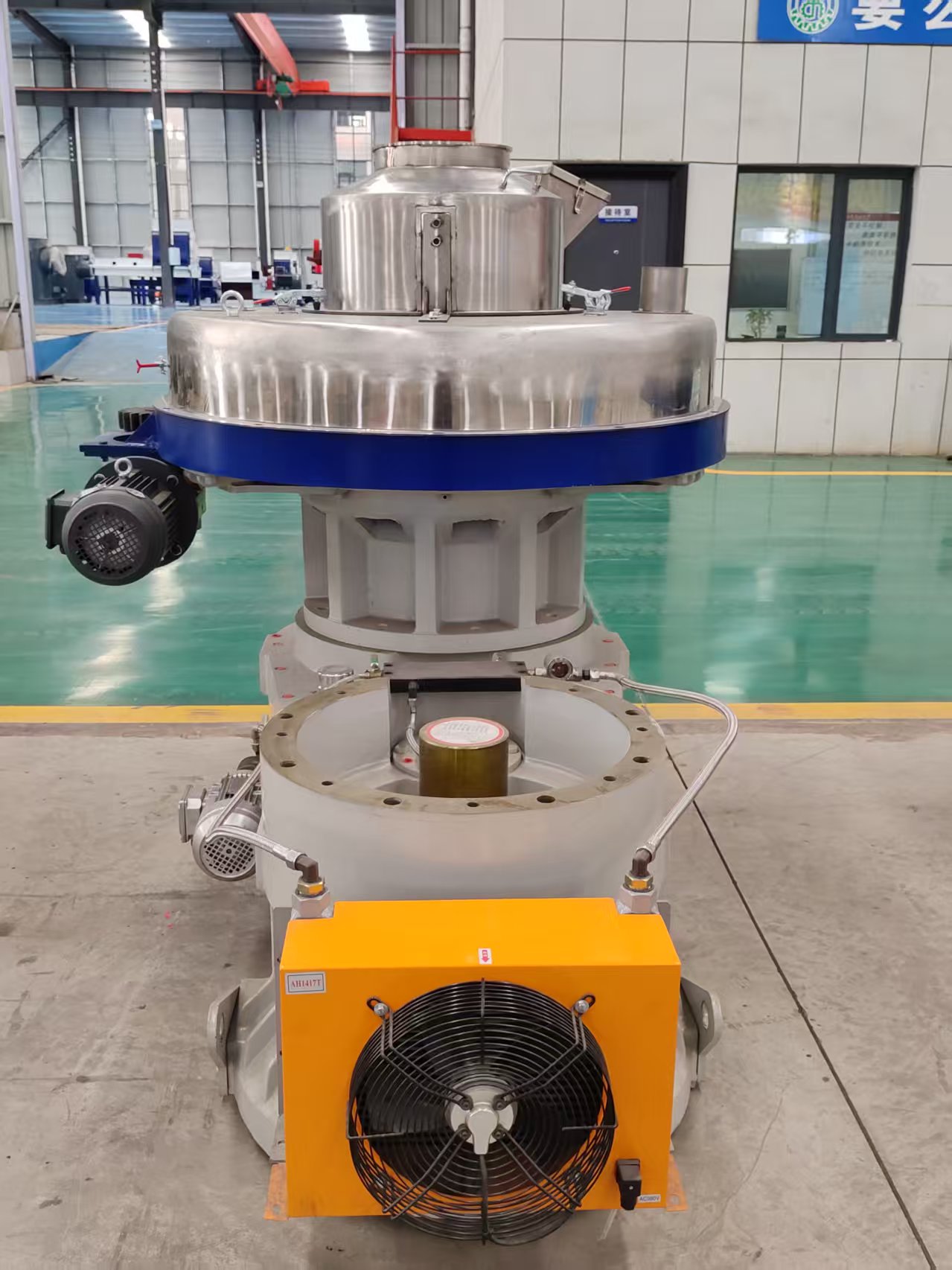

Straw Pellet Machine
High adaptability, effortlessly handling straw characteristics:
Addressing the coarse fibers and tendency to tangle, a customized feeding mechanism prevents processing stoppages caused by fiber jams, ensuring continuous operation.
Durable Design for Straw Impurities:
Considering straw may contain soil, twigs, and other debris, critical components are constructed from wear-resistant materials. This minimizes damage from impurities and extends the machine's lifespan.
Flexible Adjustment for Variable Straw Moisture:
Adapting to common humidity fluctuations in sun-dried straw, the equipment dynamically adjusts processing parameters. This enables stable handling of straw across different moisture levels without requiring additional material pre-treatment, thereby reducing upfront processing costs.
Targeted Structural Design to Adapt to Straw Material Characteristics
The Straw Pellet Machine has focused on the characteristics of straw—such as coarse fibers, easy entanglement, and impurity content—since its R&D phase. It adopts an anti-entanglement feeding system and a wide-channel feeding structure to avoid feeding jams caused by fiber tangling during straw processing. Meanwhile, a special filtering component is used to reduce impurities entering the core processing area, ensuring the equipment’s adaptability to various types of straw (e.g., wheat straw, corn stover, rice straw). Stable operation can be achieved without excessive refined pretreatment of the straw.
Enhanced Core Component Performance to Ensure Continuous Operation

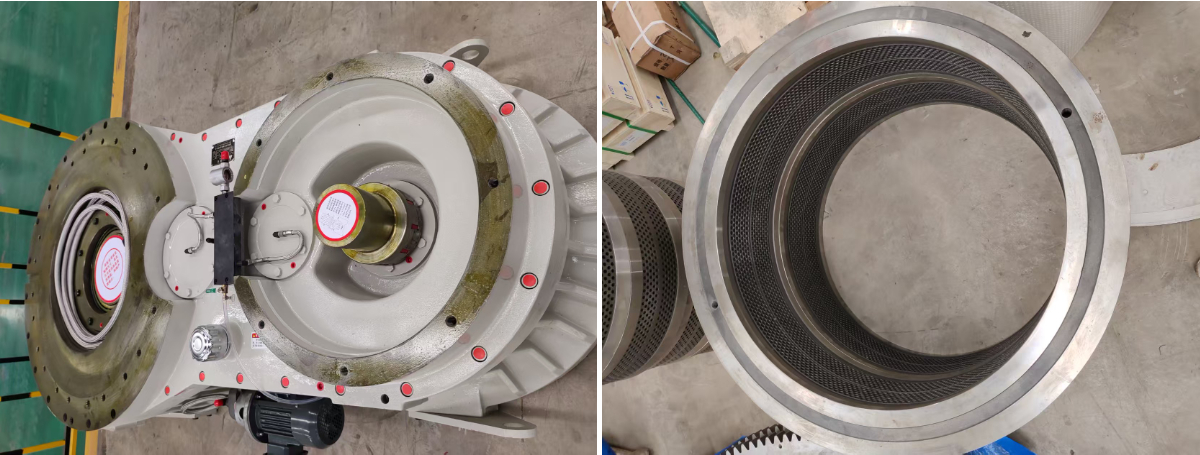

To address component wear that may occur during straw processing, key components of the Straw Pellet Machine—such as press rollers and molds—are made of high-hardness wear-resistant alloy materials to improve wear resistance. Additionally, it is equipped with an intelligent overload protection system,which automatically shuts down the equipment when the load is too high due to materials, preventing damage to core components. This effectively extends the equipment’s service life, reduces downtime caused by faults, and ensures the continuity of the processing process.
Flexible Parameter Adjustment to Cope with Straw Moisture Fluctuations
Considering that straw moisture is prone to fluctuations during collection and drying, the Straw Pellet Machine is equipped with an adjustable temperature control and pressure control system. Operators can flexibly adjust the equipment’s processing temperature and extrusion pressure according to the real-time straw moisture. Stable molding results can be ensured without additional drying or humidification of the straw, reducing the cost and complexity of pre-processing raw materials and adapting to straw processing needs in different environments.
Efficient Power Configuration to Balance Production Capacity and Energy Consumption
The Straw Pellet Machine adopts an optimized transmission structure and an energy-saving motor, which reduces ineffective energy consumption while ensuring stable processing efficiency. Its reasonable body layout not only facilitates daily operation and maintenance but also reduces noise and vibration during equipment operation, providing a more user-friendly working environment for operators. It balances production efficiency and user experience, making it suitable for small and medium-sized straw processing plants or large-scale production scenarios.
Parameters
Modle | YC-560 | YC-700 | YC-850 | YC-850 |
Main motor power | 132KW | 160KW | 250KW | 280KW |
Yield | 1.5-2T | 2-2.5T | 3.5T | 4T |

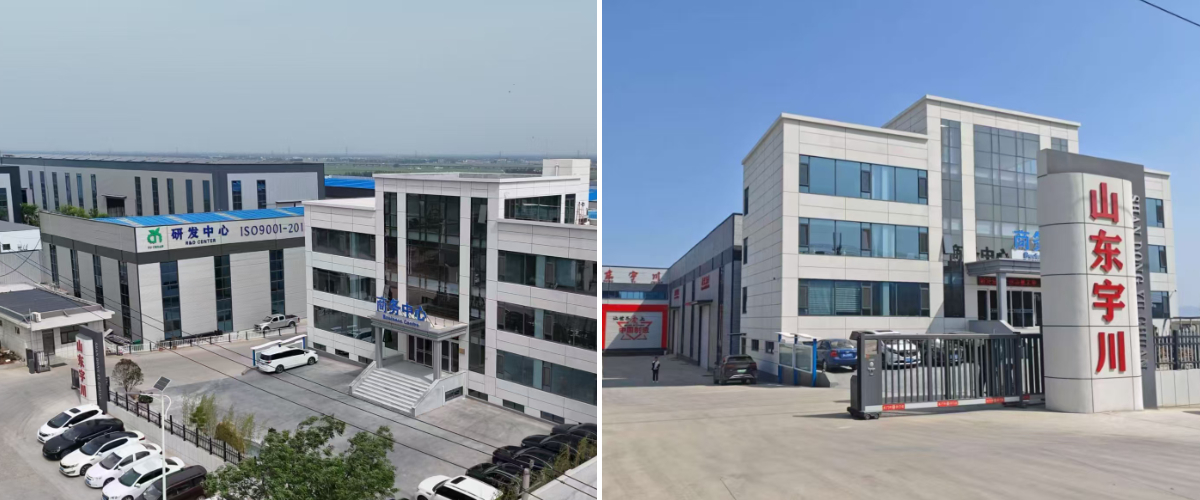

Our company
Yuchuan is a professional company specializing in the research, development, manufacturing, and export of biomass pellet equipment, drying equipment, and related machinery.
With advanced manufacturing technology, strict quality control, and extensive industry experience, Yuchuan provides efficient, energy-saving, and environmentally friendly complete solutions for customers worldwide. Our products are widely used in biomass energy, agricultural waste treatment, and resource recycling industries, and have been exported to multiple overseas markets, earning recognition and trust from customers.
Company Qualifications
