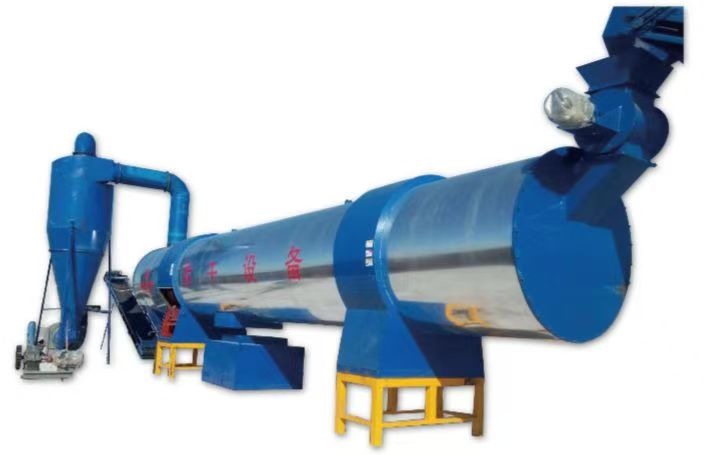

Sludge Drum Dryer
For high moisture content:
Powerful dewatering significantly reduces moisture levels to meet subsequent processing requirements.
For complex compositions:
Specialized treatment for sludge containing various organic matter and heavy metals.
For perishability issues:
Drying inhibits microbial growth, slowing decay and extending storage life.
For diverse needs:
Adjustable drying modes and parameters adapt to the characteristics of sludge from different industries.
Product Overview
Sludge dryers are specialized drying equipment designed for municipal sewage and industrial wastewater treatment, efficiently processing sludge and other organic waste. Utilizing an advanced hot air circulation system, they rapidly dry wet sludge, reducing odors and transportation costs while facilitating storage and subsequent resource recovery.
Working Principle
Sludge enters the dryer drum via the conveying system. Hot air circulates uniformly within the drum, rapidly evaporating moisture. The rotating drum and internal lifting plates are designed to break up the sludge, ensure even heating, and achieve thorough drying.
Features & Advantages
High-efficiency drying: Hot air circulation + drum rotation rapidly removes moisture.
Energy-saving and eco-friendly: Compatible with multiple heat sources to reduce energy consumption.
Robust construction: Manufactured from premium steel for corrosion and wear resistance.
Simple operation: Automatic conveying and control systems minimize manual intervention.
Versatile application: Suitable for sludge generated in municipal wastewater treatment, textile dyeing, electroplating, and other industrial sectors.
Applications
Deep dewatering of various sludges (textile dyeing, papermaking, electroplating, etc.)
Resource utilization of sludge
Installation & Usage
Install the dryer on level ground and secure the support frame.
Connect to the heat source system (coal, gas, or biomass).
Feed sludge into the drum via the conveying device.
Activate hot air circulation and drum rotation, then adjust drying temperature and duration.
Company Qualifications
Dried material discharges through the outlet and can be used directly or stored.
Supply & Service
Factory direct supply with bulk customization available
Professional export packaging for secure transportation
After-sales technical support and operational training to ensure long-term stable equipment operation
Q1: What kinds of sludge can the drum dryer process?
A1: It is suitable for municipal sludge, industrial sludge, printing and dyeing sludge, river silt, coal slime and other high-moisture viscous sludge.
Q2: Is the dryer easy to block or stick with sludge?
A2: Specially designed for viscous sludge, effectively avoiding wall sticking, caking and material blockage.
Q3: What is the final moisture content of dried sludge?
A3: It can reduce sludge moisture from 80% to 10%-20% stably. The final dryness is adjustable for fertilizer, fuel and landfill use.
Q4: Can the machine run 24 hours continuously?
A4: Yes. The rotary drum structure supports 24-hour continuous automatic operation with low failure rate, ideal for large-scale sludge treatment projects.
Q5: Is customized service available?
A5: Yes. We provide customized drying lines according to your sludge type, initial moisture, hourly capacity and factory space.
Company Qualifications

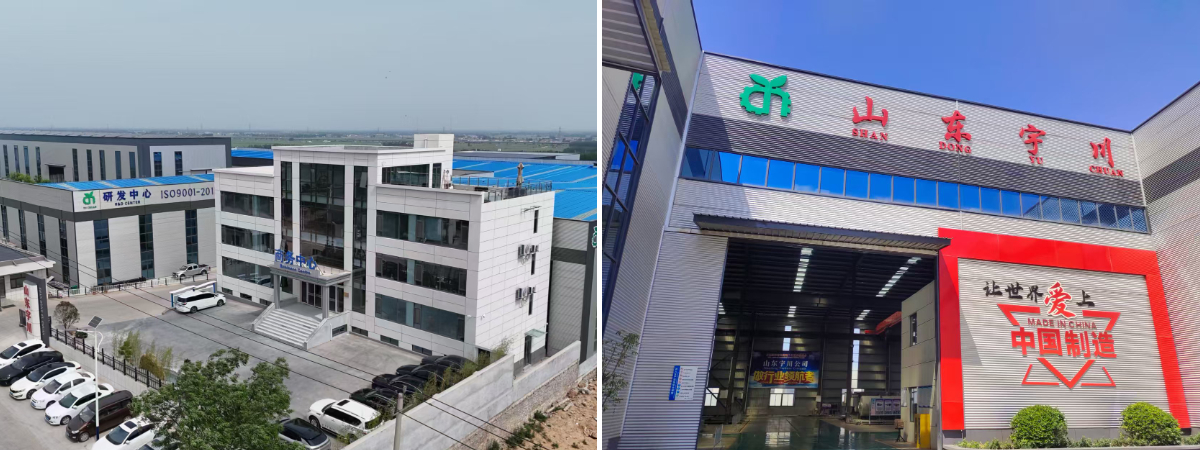

Our company

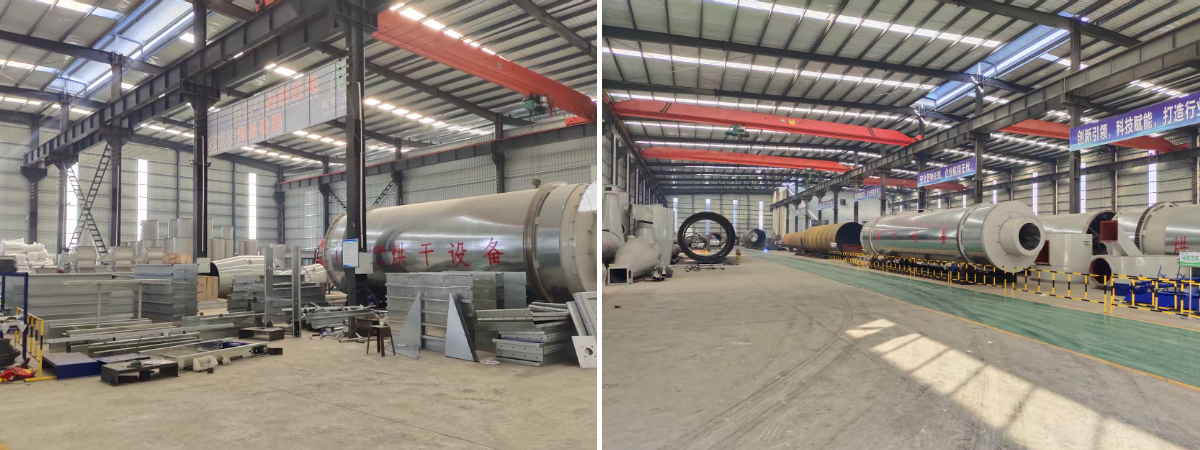

Production workshop
