Wood Pellet Line
Wide Raw Material Adaptability:
Various agricultural and forestry waste materials such as wood chips, bark, straw, and rice husks can be pelletized.
High Production Efficiency:
Features an automated continuous production design, with fully mechanized operations from raw material crushing, drying, and pelletizing to cooling and packaging, reducing labor input.
Superior Product Quality:
Output pellets feature smooth surfaces, uniform density, and high hardness, facilitating transportation and storage.
Convenient Operation and Maintenance:
Equipped with an intelligent control system for real-time production monitoring, simplifying operation. Key components are designed for easy disassembly, minimizing routine maintenance and inspection time while reducing equipment downtime.
Product Overview

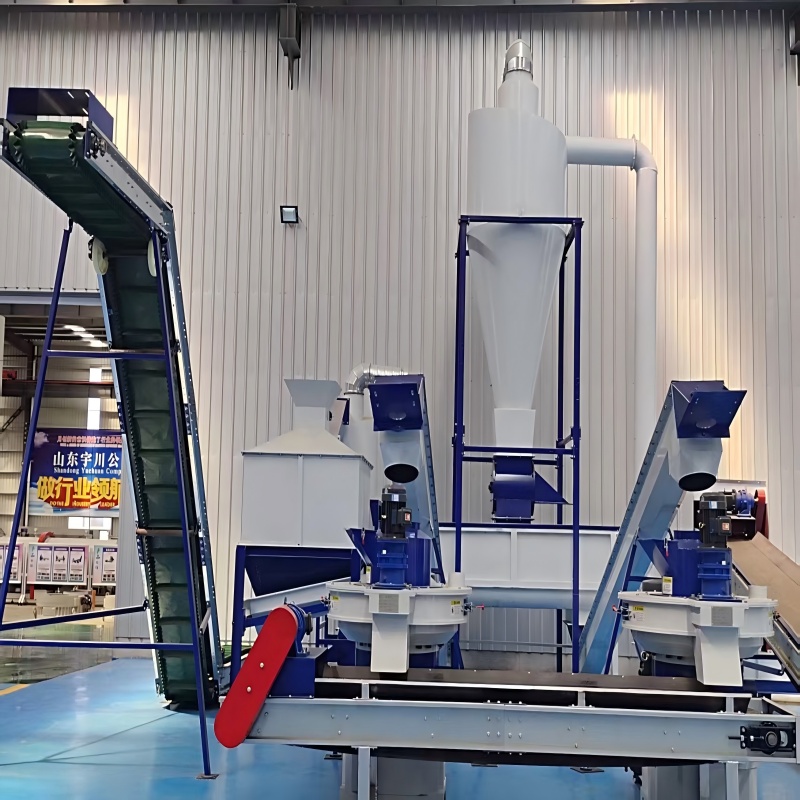

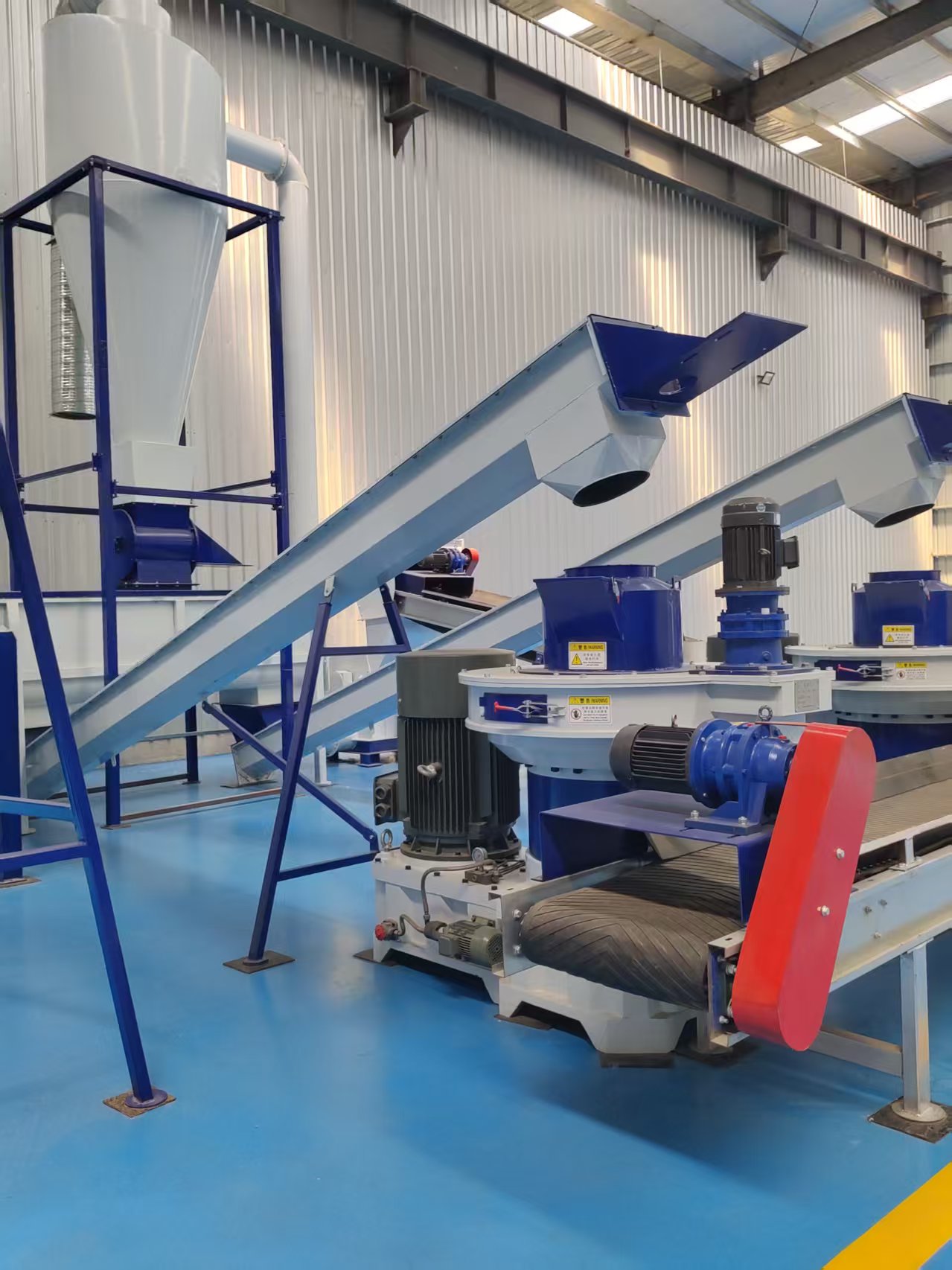

A biomass pellet production line is a complete equipment system that processes various biomass raw materials—such as wood chips, rice husks, and straw—through a series of manufacturing steps to convert them into high-density, uniformly shaped solid fuel pellets.
Primary Raw Materials
The production line exhibits broad raw material adaptability, primarily encompassing:
Forestry Waste: Wood chips, sawdust, branches, shavings, etc.
Agricultural Waste: Rice husks, straw, palm shells, bagasse, etc.
Others: Energy crops, herbaceous plants, etc.
Core Process Flow
A complete production line typically includes the following key stages:
Raw Material Crushing: Crushers reduce larger raw materials into fine particles meeting pelletization requirements.
Drying: Dryers reduce raw material moisture content to an optimal range, a critical step for ensuring pellet quality and combustion efficiency.
Pelletizing: This is the core process. Raw materials are fed into a pelletizer, where they are compressed into high-density pellets under immense pressure and die compression.
Cooling: Pellets emerging from the pelletizer are hot and soft. They must pass through a cooler to reduce temperature and set their shape, hardening them for subsequent handling.
Screening and Packaging: Vibrating screens separate qualified pellets from fines. The final step involves weighing and packaging the pellets.
Core Components of a Production Line
A typical production line consists of the following main equipment:
Crushing System: Hammer crusher, chipper, etc.
Conveying System: Belt conveyor
Drying System: Drum dryer

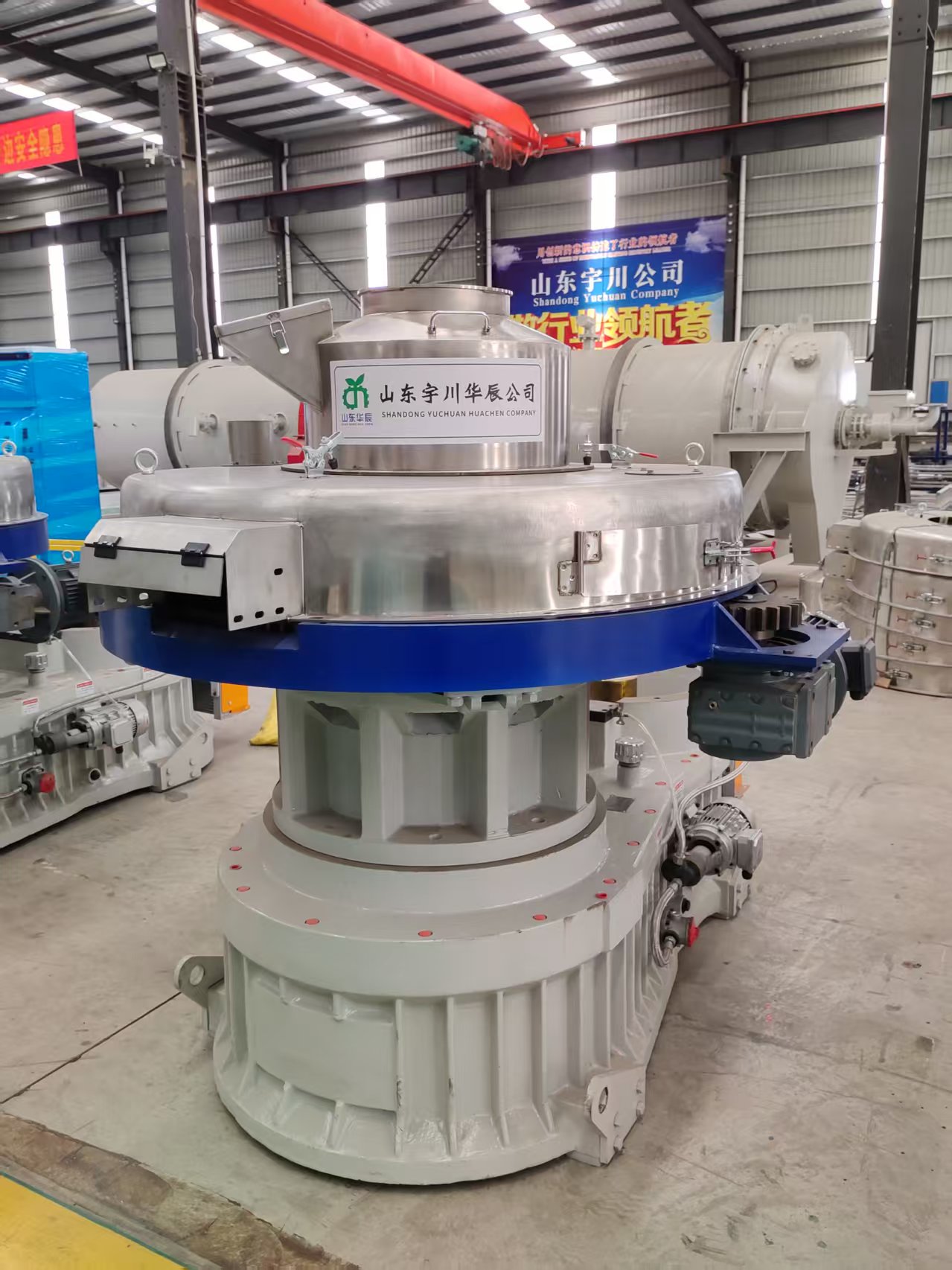

Pelletizing System: Biomass pellet mill
Cooling System: Counterflow cooler
Screening and Packaging System: Vibrating screen, automatic packaging machine.
Company Qualifications
Our company
Shandong Yuchuan Environmental Equipment Co., Ltd. is an original manufacturer specializing in drying equipment and complete biomass pellet production lines. We provide customized rotary dryers, pellet plants, technical solutions and full after-sales service to deliver reliable industrial machinery.
