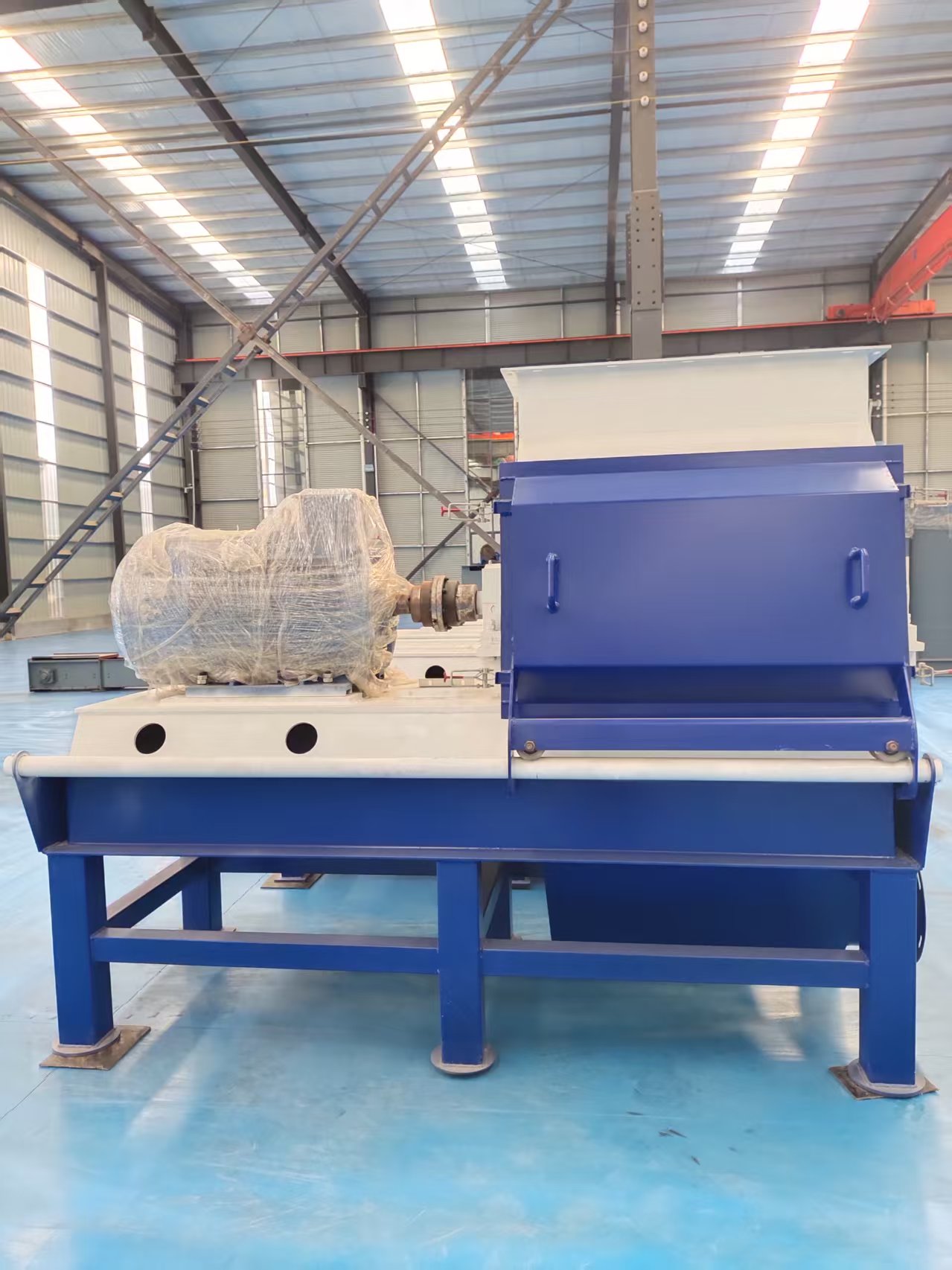

High-Efficiency Crusher
High Efficiency & Energy Savings
Energy-efficient operation significantly reduces production energy consumption, directly lowering operating costs.
Increased Output & Improved Quality
Larger crushing chamber combined with high-precision screens boosts output by 10%-20% while ensuring uniform particle size.
Robust Durability
Critical components feature 45# steel with tungsten carbide welded joints for exceptional wear resistance and extended equipment lifespan.
Easy Maintenance
Unique quick-change structure allows replacement of wear parts like hammer plates and screens in just 10 minutes, drastically reducing downtime.
Product Overview
The hammer crusher is a versatile machine that utilizes high-speed rotating hammers to impact and shear materials, thereby breaking them down.
Working Principle
The hammer crusher pulverizes materials through the impact and collision of high-speed rotating hammers, combined with grinding action. The resulting particles are discharged through the screen plate apertures, achieving controlled particle size reduction.
Features & Advantages
Simple and compact structure with a small footprint, enabling easy installation and maintenance.
High crushing efficiency achieved through high-speed hammer impact combined with multiple collision mechanisms, suitable for processing diverse materials.
Adjustable product particle size by replacing screen plates with different aperture sizes to control output specifications.
Wide applicability across industries including mining, construction materials, and chemicals.
Low operating costs with minimal energy consumption, featuring simple replacement of wear parts at controlled expenses.
Applications
Agriculture / Biomass Industry: Crushing biomass materials such as straw, wood chips, and feed.
Chemical Industry: Crushing blocky/granular materials like plastics and chemical raw materials.
Supply & Service
Factory direct supply with bulk customization available
Professional export packaging for secure transportation
After-sales technical support and operational training to ensure long-term stable equipment operation
Parameters
Model | YC65-55 | YC65-75 | YC65-100 | YC65-120 | YC120-160 | YC120-200 |
Main Motor Power | 55KW | 75KW | 90KW | 132KW | 185KW/200KW | 250KW/280KW |
Output | 1T - 1.5T | 2T - 2.5T | 3T - 3.5T | 4T - 5T | 8T - 10T | 10T - 15T |
Company Qualifications
