Coal Drum Dryer
Coal dryer has significant advantages: 3-5 people can complete the operation of the production line, low labor costs, and can be flexibly combined and installed according to the site, saving space. Various choices of heat source can be selected according to the actual needs of coal, biomass fuel, etc.. Stable operation, low failure rate, continuous production without stopping, improve efficiency and reduce maintenance costs. Strong drying capacity, good closure, high heat utilization, energy saving and environmental protection, and can be adapted to a variety of coal materials, as well as intelligent control system, accurate control of drying parameters.

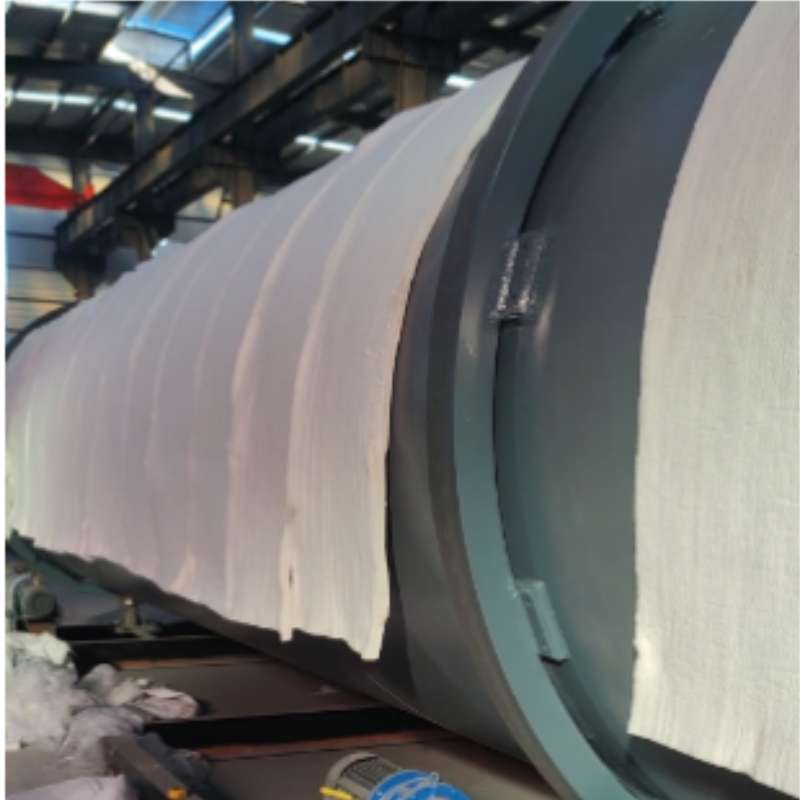

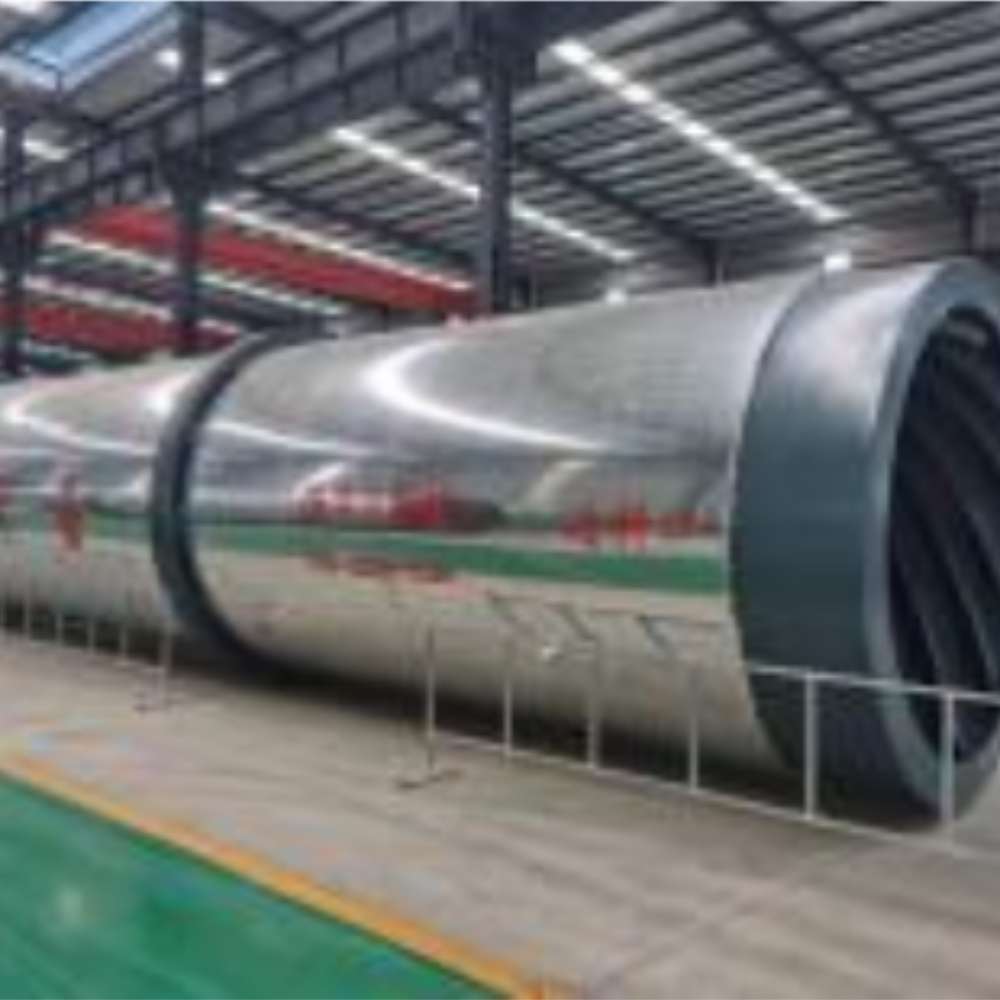

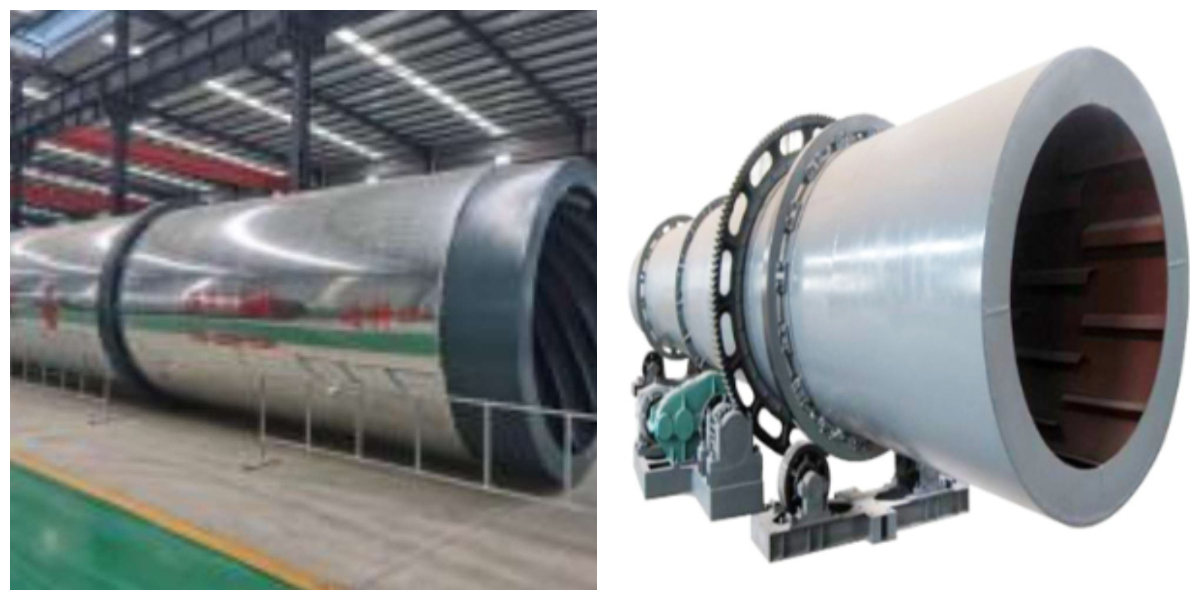

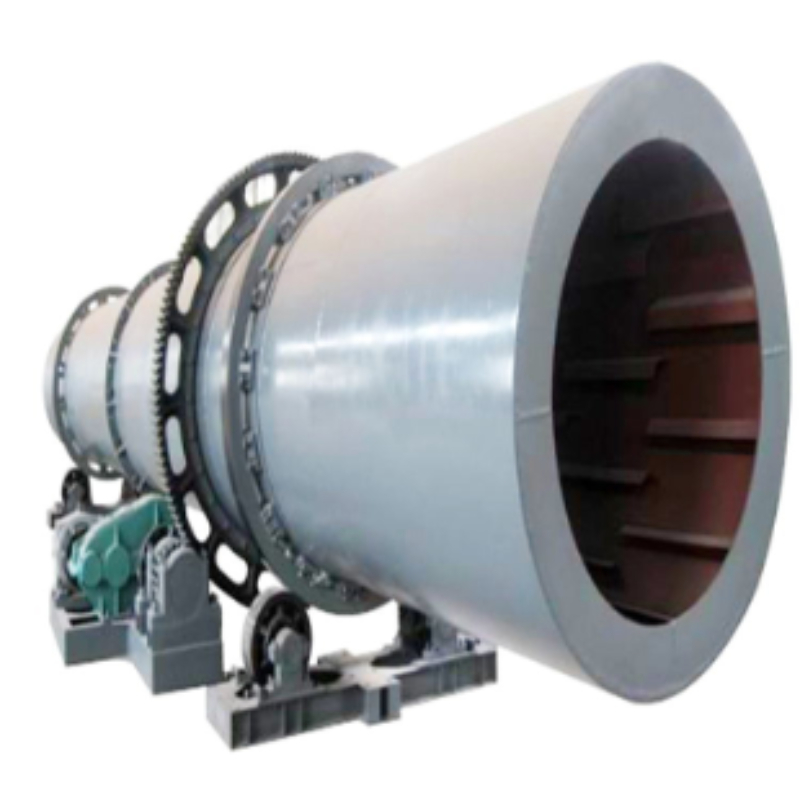

Coal Drum Dryer is a high-efficiency equipment designed for coal dewatering and drying, adopting drum structure design, the core components include heating device, transmission system, temperature control module and dust removal equipment, and the whole body is made of high-quality steel welded, with strong wear-resisting ability, which can meet the demand of different scales of coal processing. The
equipment is equipped with an intelligent PLC control system and a convenient touch screen, which can present key parameters such as drying temperature, drum speed and material moisture content in real time, and support automatic thermostatic adjustment and automatic fault alarm, which can be skillfully operated by operators after simple training. The heat source can be flexibly adapted to a variety of ways, compatible with a variety of heating equipment, high thermal efficiency, compared with traditional drying equipment is more energy efficient. For the characteristics of different coal types, the machine is equipped with a special internal plate structure: when dealing with easy to adhere to the coal, it adopts a dispersing device to prevent agglomeration; when drying hard coal, it optimizes the lifting angle to enhance the heat exchange efficiency. The whole machine is equipped with perfect three-stage dust removal system, which can effectively reduce the dust emission and meet the national environmental protection standard. The equipment is widely used in coal mines, coal washing plants, thermal power plants and other scenarios, and can handle raw coal, fine coal, coal slurry and other materials, and the moisture can be stably controlled after drying, which is convenient for storage and transportation and improves the combustion efficiency. The equipment provides corresponding warranty service and lifelong technical support, reasonable installation and commissioning cycle, and also supports customized production line layout according to customer site requirements.
The technical principles and process flow of Coal Drum Dryer:
1. Physical drying principle
Wet coal slurry enters the dispersing device through a belt conveyor, and after being crushed, it enters the negative pressure drying machine, where it is dehydrated through four working areas:
Material guide area: High temperature hot air (430 ℃) rapidly evaporates water, and the large guide angle plate prevents adhesion.
Cleaning area: A material curtain is formed by copying boards, and the cleaning device breaks down clumps of balls and increases the heat exchange area.
Tilting material lifting plate area: Low temperature drying (60 ℃ -210 ℃), the material is in a loose state, reaching the target moisture content.
Discharge area: The drum is designed without a copying plate, and the material rolls and slides to the discharge port.
2. Key process steps
Pre treatment: Grind to 2-8mm particles and control the moisture content at 15% -20% (if it is too high, it needs to be dried).
Granulation molding (optional): In some scenarios, coal slurry needs to be compressed into granular fuel to improve combustion efficiency.
Cooling and screening: Natural air cooling reduces temperature and screens out non-conforming products.
Packaging and Storage: Automatic metering packaging for easy transportation and long-term storage.
