Bagasse Pellet Line
Device name, function description, and key parameters
Chain conveyor Uniform feeding, avoid blockage The conveying capacity is 5-20t/h
Twin shaft crusher for efficient crushing of high-fiber materials with a power of 55-160kW
Three-channel drum dryer energy-saving drying, heat source optional steam/gas/biomass evaporation water volume 1-10t/h

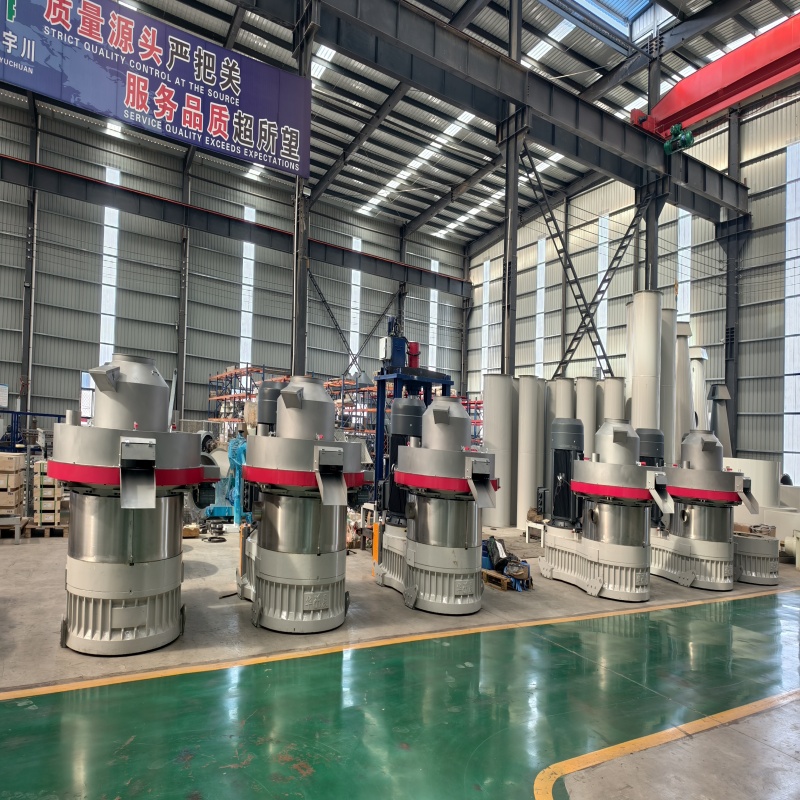

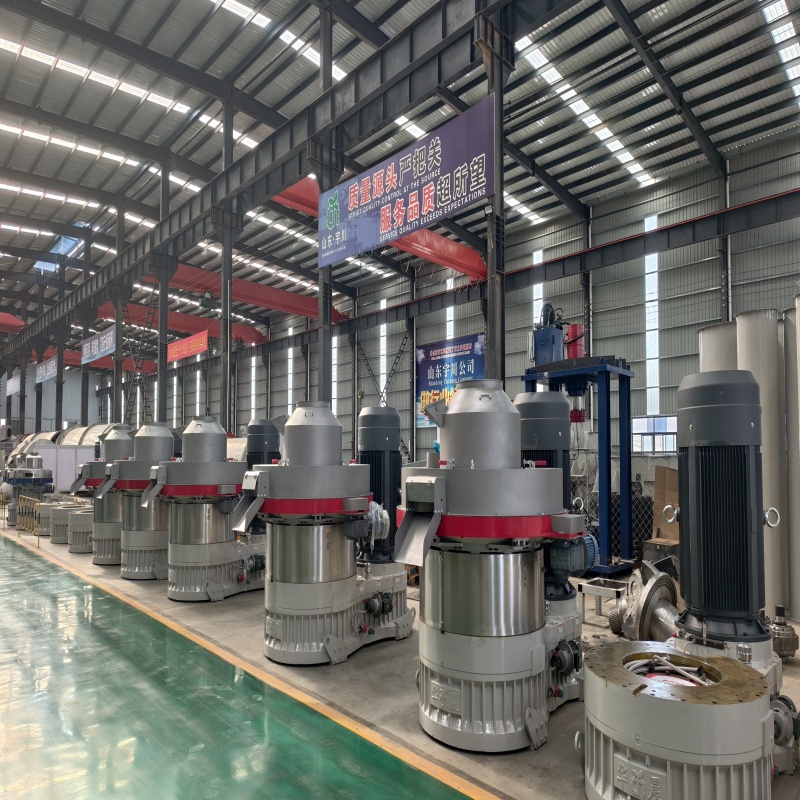

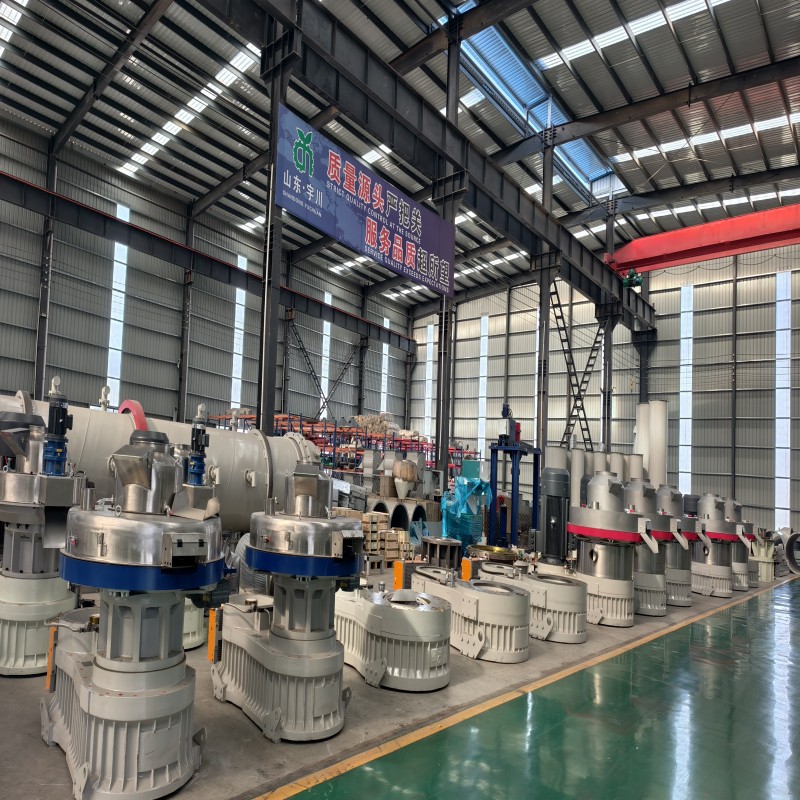

Ring die granulator core forming equipment, wear-resistant ring die life ≥ 1000 hours, production capacity 1-10t/h, die hole diameter 6-12mm
Counterflow cooler Rapid cooling to reduce particle cracking Cooling time 15-30 minutes
Pulse dust removal system collects dust, in line with environmental protection standards Filtration accuracy 0.1μm
1. Introduction to bagasse granules
Bagasse pellets are biomass fuel or feed pellets made from fiber residue (bagasse) after sugar extraction from sugarcane through crushing, drying, compression and other processes. It has the characteristics of high calorific value (about 3500-4500 kcal/kg), low carbon emissions, and renewable, and is widely used in energy, agriculture and other fields.

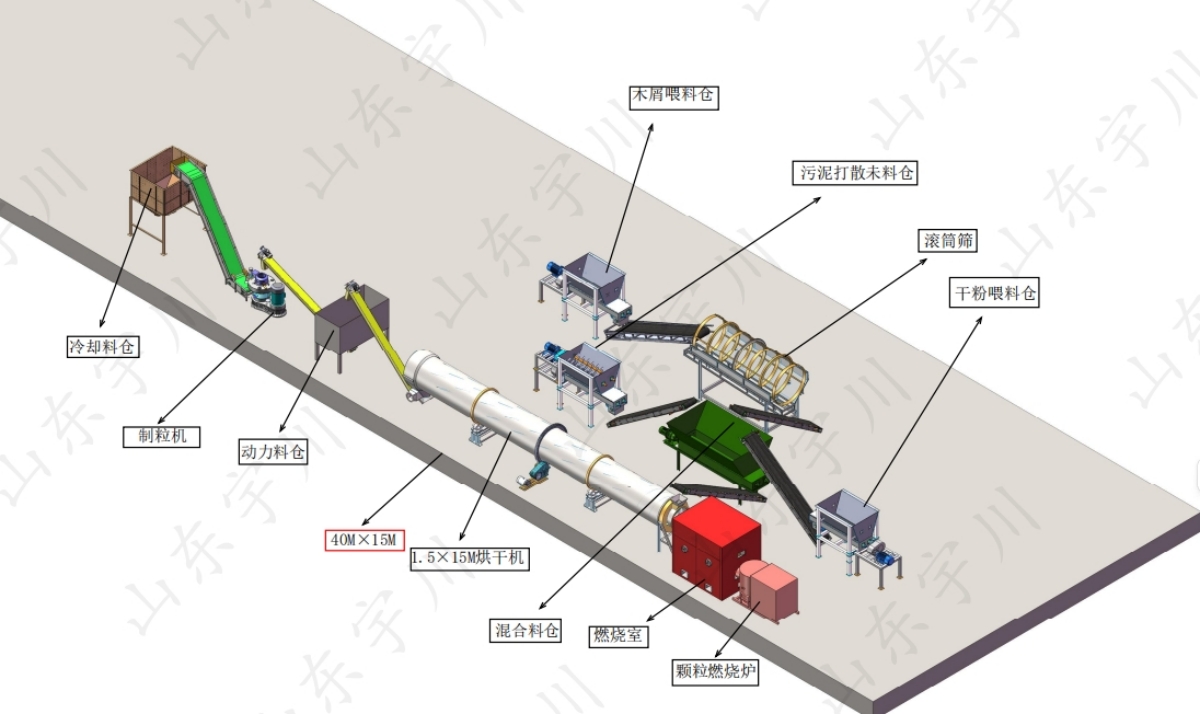

Second, the production line process
Raw material pretreatment
Impurity removal: remove impurities such as stones and metals through a vibrating screen or magnetic separator.
Coarse crushing: Hammer crusher to crush bagasse to 3-5mm fiber particles.
dry
A tumble dryer or jet dryer is used to reduce the moisture content of the raw material from 40-50% to 10-15% (fuel pellets) or 12-18% (feed pellets).
Fine crushing and quenching
The second crushing to 1-3mm, the feed pellets need to be mixed with nutrients (such as proteins, minerals).
Compression molding
Ring die pelletizer: Bagasse is compressed into cylindrical pellets with a diameter of 6-10mm under high pressure, and the temperature rises to 70-90°C to soften and bond lignin.
Cooling: The mold particles are cooled and shaped by the cooling tower.
Sieving & Packing
The vibrating screen removes debris, and the qualified particles are weighed and packaged by the packing machine (25-50kg/bag or ton bag).
3. Core equipment composition
Device name, function description, and key parameters
Chain conveyor Uniform feeding, avoid blockage The conveying capacity is 5-20t/h
Twin shaft crusher for efficient crushing of high-fiber materials with a power of 55-160kW
Three-channel drum dryer energy-saving drying, heat source optional steam/gas/biomass evaporation water volume 1-10t/h
Ring die granulator core forming equipment, wear-resistant ring die life ≥ 1000 hours, production capacity 1-10t/h, die hole diameter 6-12mm
Counterflow cooler Rapid cooling to reduce particle cracking Cooling time 15-30 minutes
Pulse dust removal system collects dust, in line with environmental protection standards Filtration accuracy 0.1μm
Fourth, the application field of the product
Biomass energy: replace coal burning for boilers and power plants; EU-certified low-carbon fuel (ENplus standard).
Animal feed: ruminant crude fiber supplement, in accordance with GB/T 25865-2010 feed hygiene standard.
Organic fertilizer carrier: adsorption of nutrients to make slow-release fertilizer.
Industrial raw materials: papermaking, fiberboard production.
Fifth, the advantages of the production line
Environmental benefits: reduce methane emissions from bagasse open stacking, CO₂ emissions are 80% lower than coal.
Economy: The cost of raw materials is low (about 200-300 yuan/ton), and the payback period is 1.5-3 years (based on an annual output of 20,000 tons).
Degree of automation: The PLC control system realizes real-time monitoring of humidity, temperature and output, and reduces labor by 50%.
Flexible adaptation: Different specifications of pellets (e.g. 4mm pet feed pellets) can be produced by changing molds.
6. Examples of technical parameters (medium-sized production line)
Capacity: 3-5t/h
Total power: approx. 450 kW
Workshop area: 800-1200 square meters
Yield: ≥92%
Particle density: 1.1
