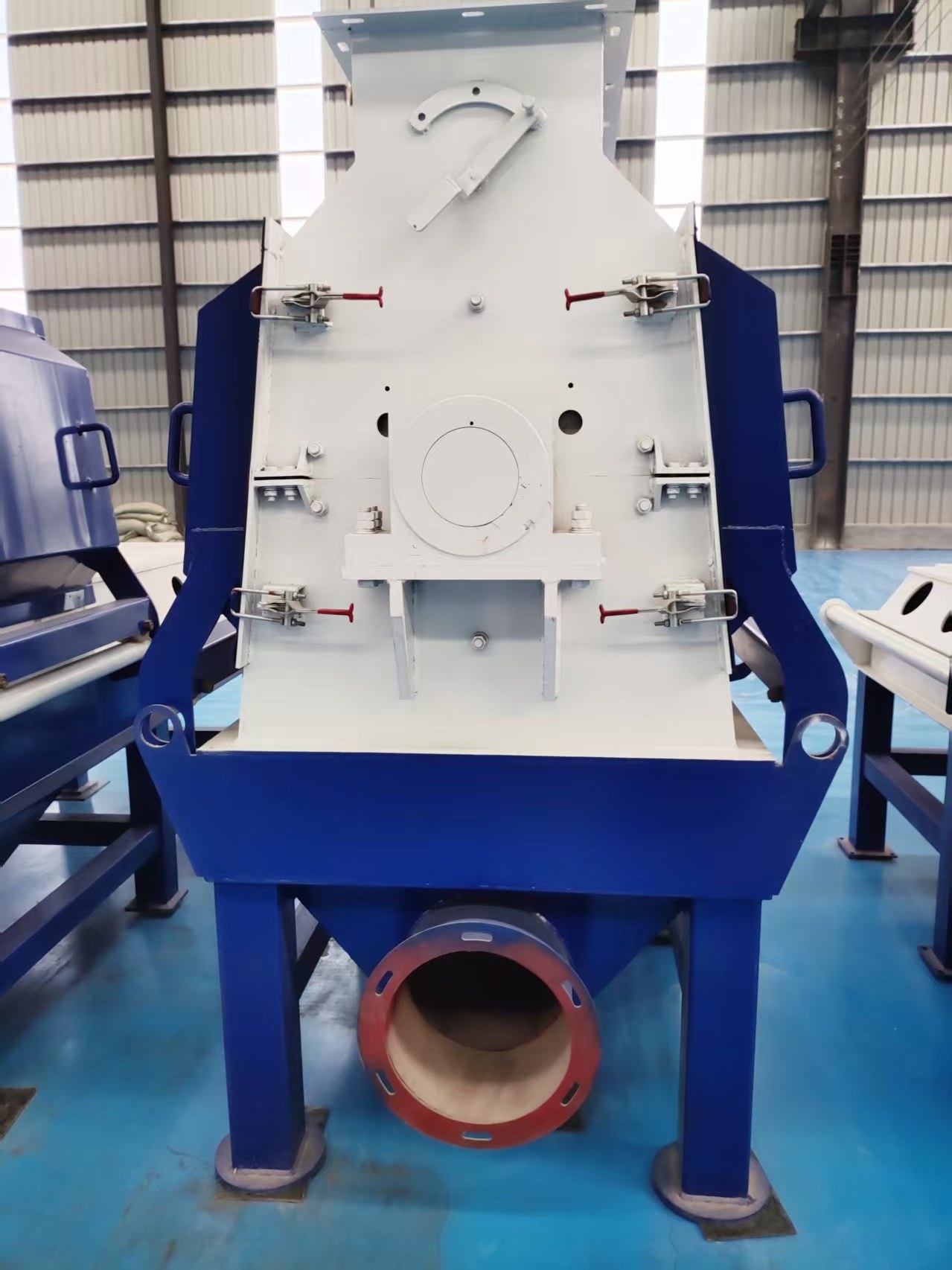

Wood Block Crusher
Specialized Material Processing:
Designed for diverse biomass feedstocks, precisely meeting pulverization requirements.
High Efficiency:
Utilizes unique principles and hammer arrangement for rapid, high-quality pulverization.
Optimized Design:
Enhanced rotor-screen coordination minimizes material residue and boosts output.
Environmental Performance:
Equipped with dust extraction port for connecting dust collectors, reducing particulate pollution.
Versatile Applications:
Suitable for biomass energy and multiple sectors, meeting diverse industrial production needs.
Product Overview
The high-efficiency pulverizer is a crushing device specifically designed to process various types of biomass materials, such as straw, wood chips, rice husks, branches, corn cobs, and more.
Working Principle
The high-efficiency grinder works by using high-speed rotating hammer pieces to impact and cut biomass raw materials. The optimized rotor enables the wind (flow (of air, here for the context of airflow generated by rotor)) to coordinate with the screen for sieving, thus achieving efficient grinding.
Structure & Material
Key components utilize a butt-welding process combining 45 steel with tungsten carbide, delivering exceptional wear resistance and damage resistance for extended equipment longevity.
Technical Parameters
Model | YC65-55 | YC65-75 | YC65-100 | YC65-120 | YC120-160 | YC120-200 |
Main Motor Power | 55KW | 75KW | 90KW | 132KW | 185KW/200KW | 250KW/280KW |
Output | 1T - 1.5T | 2T - 2.5T | 3T - 3.5T | 4T - 5T | 8T - 10T | 10T - 15T |
