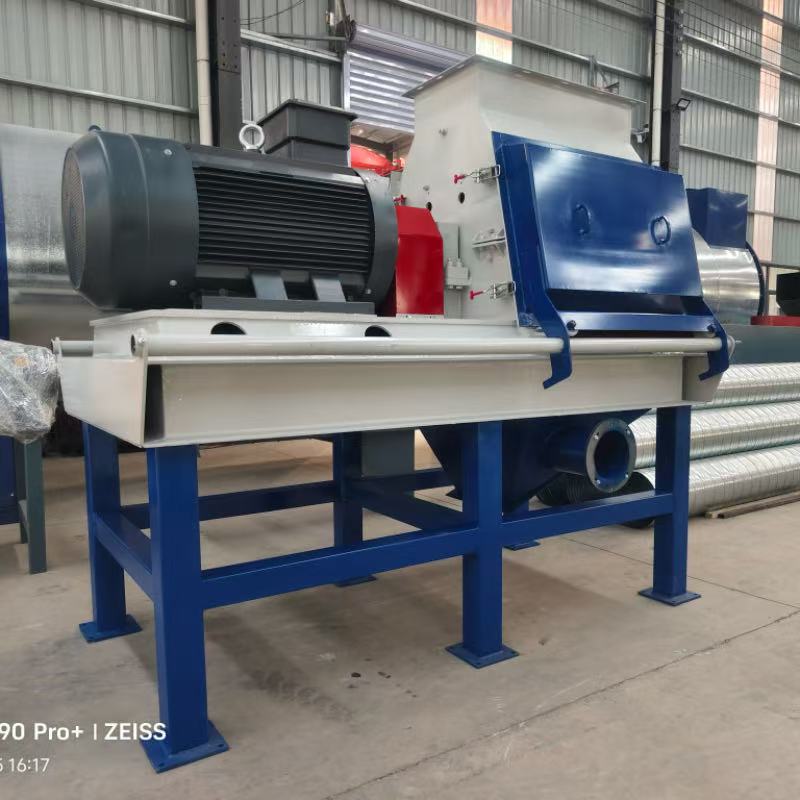

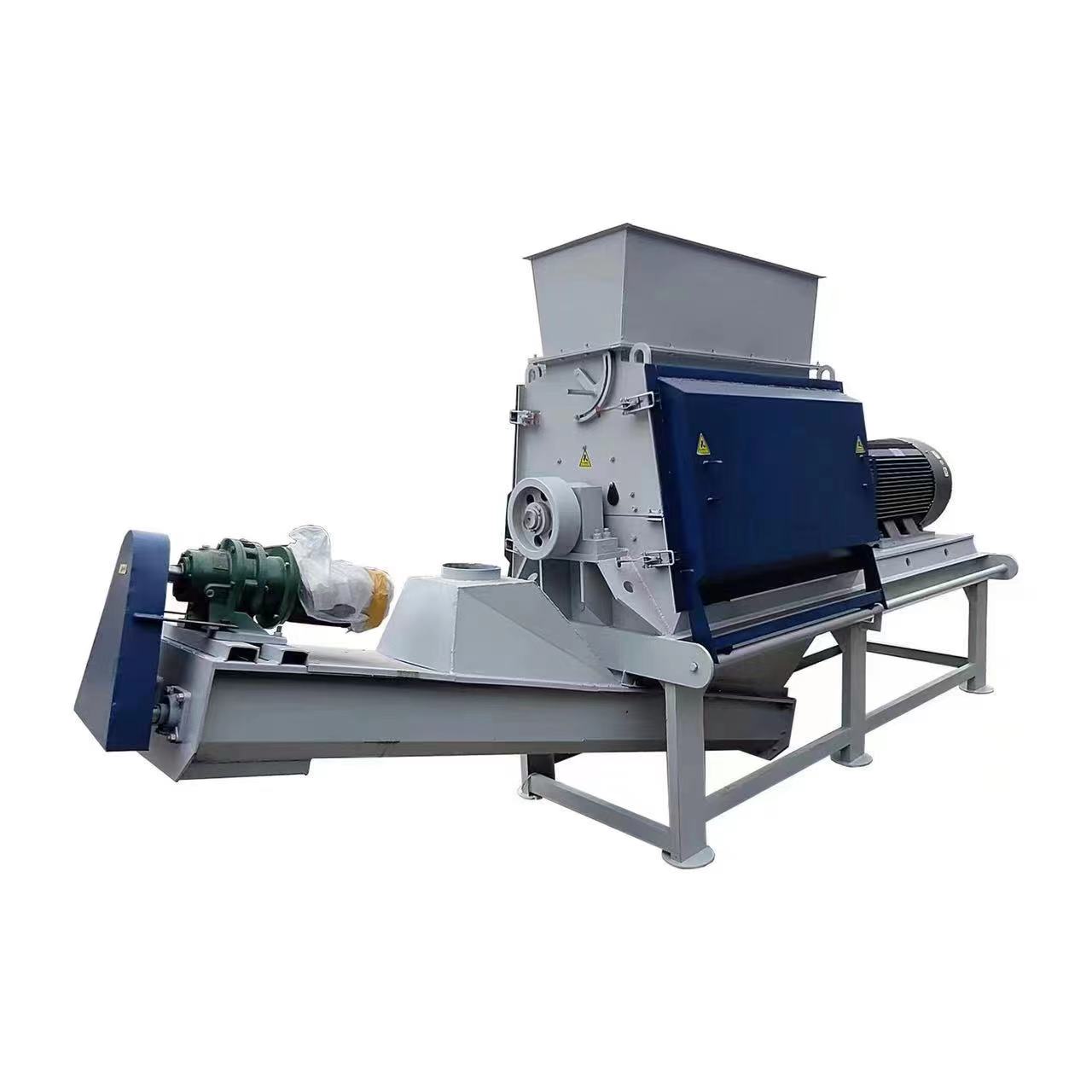

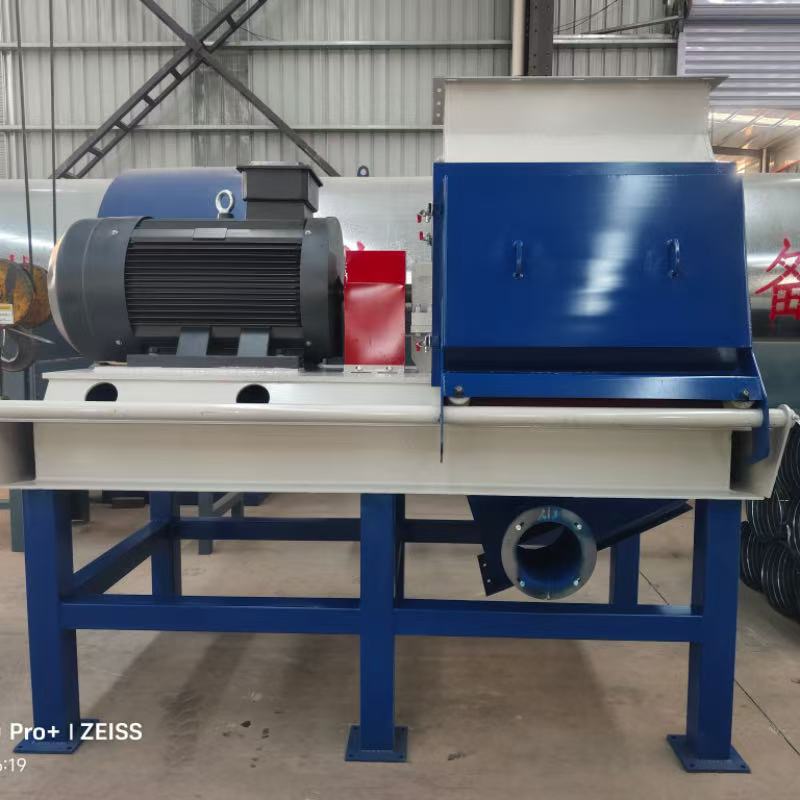

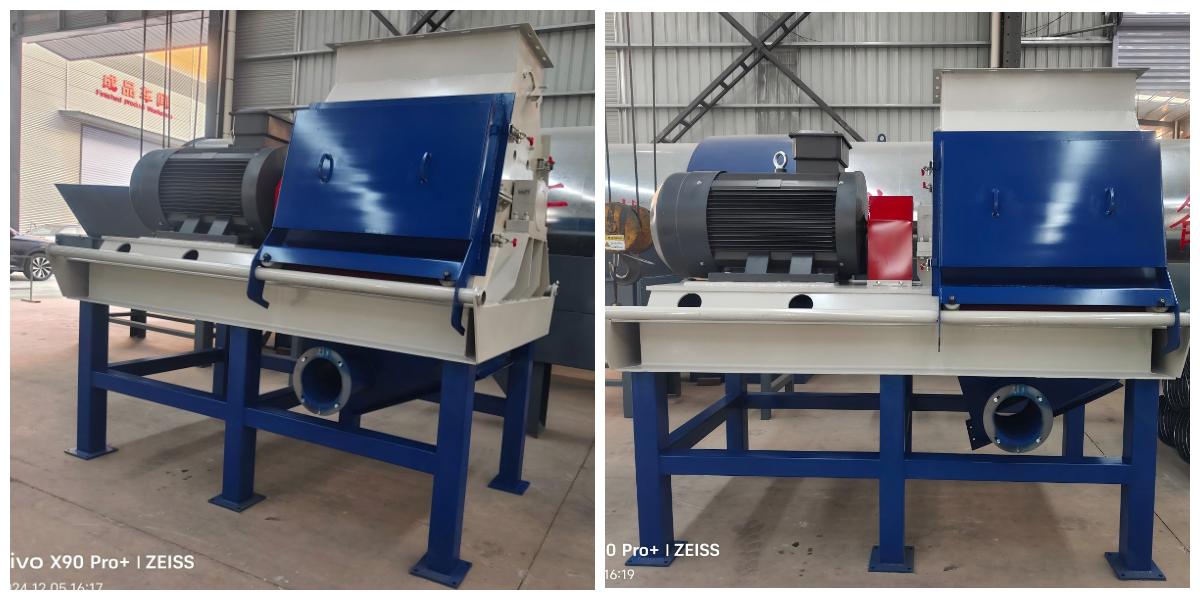

Hammer Mill for Biomass
Product features：
This series of crushers adopts column-pin coupling direct transmission, and the hammer pieces are arranged symmetrically. After balance verification, the rotor can work in reverse.
The operating door has a safety interlock device to ensure that the operating door cannot be opened when the machine is running.

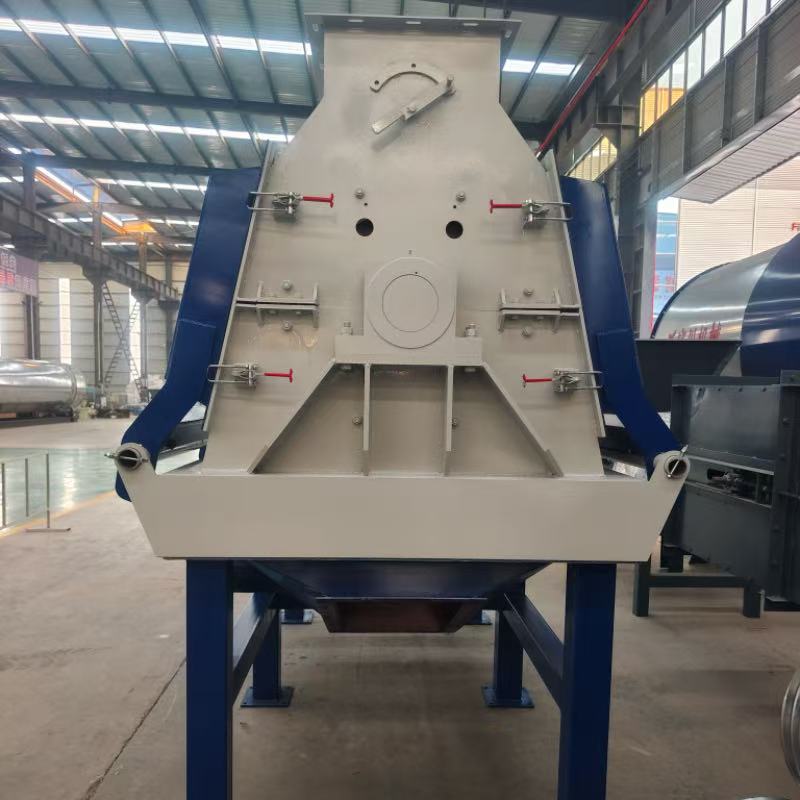

Both sides can be opened, which is convenient to replace the screen and the maintenance cost is low.
The machine has a reasonable structure, is sturdy and durable; reliable, easy to install and easy to operate; small vibration and high efficiency.
Hammer Mill

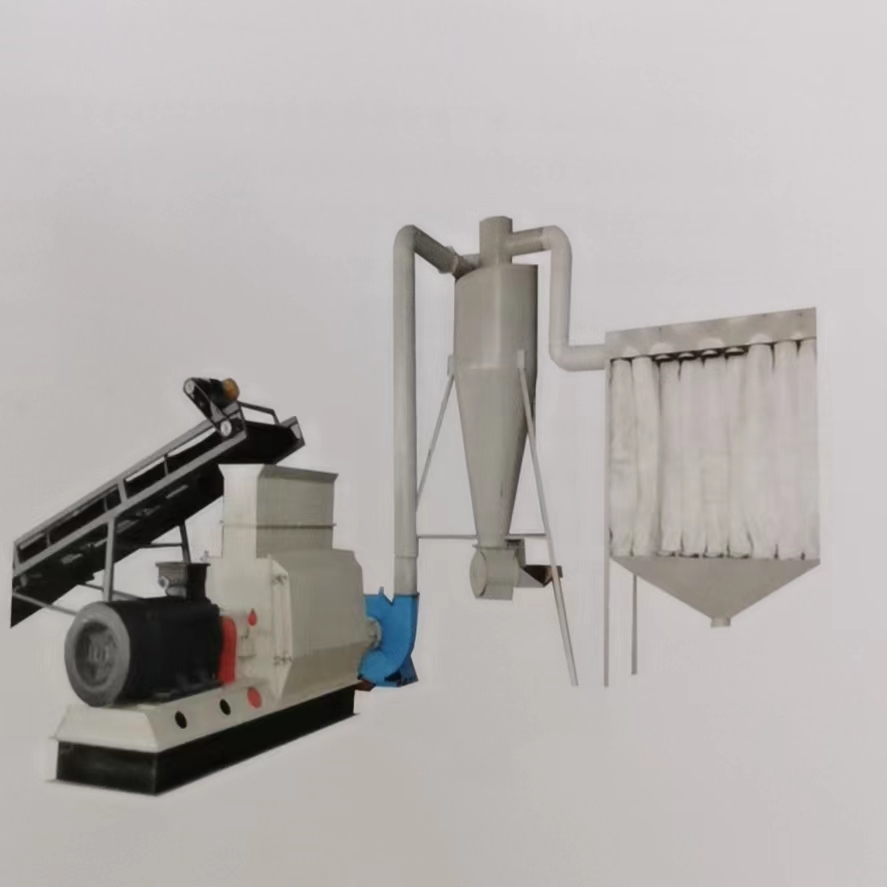

High-efficiency crusher is a crushing equipment specially designed to handle all kinds of biomass raw materials (such as straw, wood chips, rice husks, branches, corn cobs, etc.). Adopting the principle of high-speed rotating hammer impact and hammer cutting, the multi-combination hammer is symmetrically arranged, the crushing efficiency is high, the rotor design is optimised, the wind speed is matched with the screen, and the material residue is reduced. Equipped with a dust removal interface, it can be connected to a cloth bag dust collector to reduce dust pollution. It is suitable for biomass energy, feed processing, organic fertiliser production and other fields.
Main motor power | 55KW | 75KW | 90KW | 132KW | 185KW 200KW | 250KW 280KW |
Output | 1T-1.5T | 2T-2.5T | 3T-3.5T | 4T-5T | 8T-10T | 10T-15T |
Wood Chip High Efficiency Pulverizer is a professional equipment for wood processing and related industries, which plays a key role in the fields of biomass energy, furniture manufacturing, edible fungus cultivation and so on, and can greatly improve the efficiency and quality of wood chip processing.
It can pulverize all kinds of wood materials such as logs, branches, trimmings, waste furniture, etc. It is especially suitable for making uniform wood chips from pine, fir, poplar, etc., which can provide high-quality raw materials for biomass fuel and edible fungus culture medium.
Performance, its crushing efficiency is far more than ordinary equipment, a model can handle tons of wood per hour; particle size can be controlled to meet different process requirements; stable operation, vibration and noise is small, and energy saving is outstanding.
Structure, crushing chamber with high-strength wear-resistant materials, to extend the life; feed port adapted to a variety of feeding methods, can prevent clogging; optimization of the internal structure to improve efficiency and quality, the overall compactness, easy installation and maintenance.
The working principle is through the high-speed rotating parts impact, material collision friction to achieve crushing, part of the model with airflow assistance system, different types can efficiently complete the transformation of wood to wood chips.
