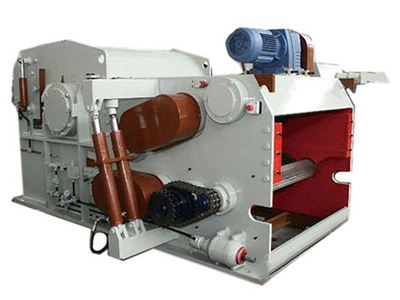

Drum Wood Chipper
Efficient wood chipping: The drum rotates at high speed, driving the blades for continuous cutting, with large processing capacity and high efficiency, suitable for large-scale processing.
Uniform finished product specifications: The wood chips are uniform, meeting the specific requirements of different industries for specifications and ensuring stable subsequent processing.
Wide range of applicable materials: Can handle various types of wood, wood with a small amount of impurities, curved branches, etc., with strong adaptability.
Durable structure: High-strength steel body, wear-resistant core components, low failure rate and long service life.
Flexible and easy operation: Convenient feeding and control system, adjustable wood chip specifications, easy to operate.
Low energy consumption: Reasonable unit energy consumption while achieving efficient wood chipping, reducing long-term energy costs and meeting energy-saving needs.

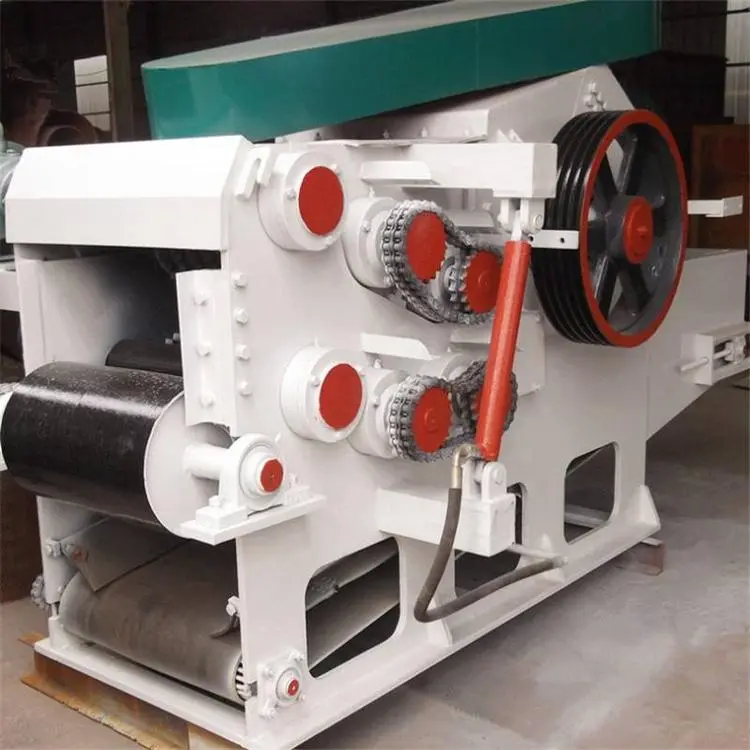

Details of Drum Wood Chipper
I. Overview of Uses
The drum timber chipper is a specific gear for getting ready terrific wooden chips, which occupies a key function in the wooden processing enterprise chain. It can reduce a number of timber uncooked substances such as logs, small-diameter wood, department wood, and plates into industrial timber chips with uniform length, flat 切口，and uniform thickness. It is extensively used in paper mills, particleboard factories, fiberboard factories, biomass strength plants, as nicely as wooden chip manufacturing and export bases. Through environment friendly wooden crushing treatment, it presents certified primary uncooked substances for subsequent procedures such as pulp and paper making, plate manufacturing, and power conversion.
II. Working Principle
Wood is fed into the gear from the feed inlet. At this time, the knife curler pushed by way of the motor begins to rotate at high speed, and the flying knives established on the knife curler go in a round action accordingly. When the wooden comes into contact with the high-speed rotating flying knives, it is reduce by way of a robust influence force. The outer facet of the drum in the slicing mechanism is supplied with a wide variety of rectangular thru holes. The reduce portions that meet the dimension necessities will fall via the display screen holes and be discharged from the backside of the equipment; whilst the large portions will be reduce with the aid of the flying knives once more in the computing device till their measurement meets the necessities and then be discharged.
III. Structural Composition
Machine Body: Made of high-strength metal plate welding, it serves as the assisting basis of the whole equipment, making sure the balance and firmness of the gear all through operation and being capable to stand up to the influence pressure generated throughout timber cutting.
Knife Roller: Two, three or 4 flying knives are set up on the knife roller. The flying knives are firmly constant on the knife curler thru exceptional flying knife bolts and stress blocks. The high-speed rotation of the knife curler is the core electricity to realise timber cutting. Its rotation speed, the quantity of flying knives, set up attitude and different elements collectively decide the reducing efficiency and wooden chip quality.
Upper and Lower Feeding Mechanism: Composed of a feed interface, top and decrease feed rollers and a feed hole adjustment mechanism. The wooden getting into from the feed interface is tightly pressed by means of the top and decrease feed rollers and fed to the reducing mechanism at a precise speed. Through the feed hole adjustment mechanism, it can be adjusted in accordance to the thickness of the wood, thereby controlling the dimension of the reduce wooden chips.
Hydraulic System: The oil pump materials oil to the oil cylinder. This machine has two essential functions. Firstly, it can begin the cover, which is handy for operators to change the blades; secondly, in the course of tools maintenance, the top feed curler meeting can be lifted, which is handy for adjusting the hole between the flying knife and the backside knife, as nicely as disassembling and putting in the comb plate.
Feeding Device: Responsible for stably and consistently conveying the wooden to be processed to the feed inlet, making sure the non-stop operation of the gear and enhancing manufacturing efficiency. Some superior drum timber chipper feeding units additionally have the feature of robotically sensing and adjusting the feeding velocity to adapt to the processing desires of wooden of extraordinary substances and sizes.
IV. Technical Parameters (taking frequent fashions as examples)
| Model | Main Motor Power (kw) | Production Capacity (T/h) | Feed Inlet Size (cm) | Wood Chip Length (mm) |
| Y8X216 | 55+3+1.5+3+1.5 | 5-8 | 23*50 | 30 |
| Y8X218 | 110+5.5+1.5+5.5+1.5 | 8-15 | 30*68 | 30 |
| Y8X2113 | 220+7.5*2+1.5+1.5 | 15-25 | 35*80 | 30 |
V. Application Fields
Paper Industry: Cutting timber into timber chips of fabulous specs as the important uncooked cloth for papermaking. Through subsequent pulping and papermaking processes, a number of paper merchandise are produced, such as newsprint, packaging paper, and family paper.
Wood-based Panel Manufacturing: Providing uncooked cloth wooden chips for particleboard factories and medium and high-density fiberboard factories. These wooden chips are processed thru drying, gluing, warm urgent and other procedures to make distinctive sorts of wood-based panels, which are broadly used in furnishings manufacturing, indoors ornament and different fields.
Biomass Energy: In biomass energy plants, wooden chips are used as biomass fuel, which is transformed into warmness electricity thru combustion, and then into electrical energy. The drum timber chipper can effectively technique quite a number timber wastes, recognize the reuse of resources, and grant robust help for the manufacturing of easy energy.
Other Fields: In wooden processing workshops, it is used to system wooden scraps, waste plates, etc., changing them into reusable timber chips; in landscaping, it can technique pruned branches, and after reducing them into wooden chips, they can be used as uncooked substances for backyard mulch or natural fertilizers to promote plant boom and soil improvement.
