Coconut Shell Pellet Mill
Designed specifically for hard materials: Featuring a robust construction and pressure rollers, it is engineered to handle the high hardness and high fiber content of coconut shells, ensuring a stable pelletizing process without clogging.
High Efficiency & Low Energy Consumption: Optimized transmission system maximizes output while minimizing power usage, significantly reducing your overall production costs.
Wear-resistant and durable: Core components such as molds and pressure rollers are manufactured from high-quality alloy steel and undergo heat treatment, ensuring exceptional wear resistance and a long service life.
Wide range of applications: It can produce high-density biomass fuel pellets and animal feed, transforming agricultural waste into a profitable resource.
Product Overview

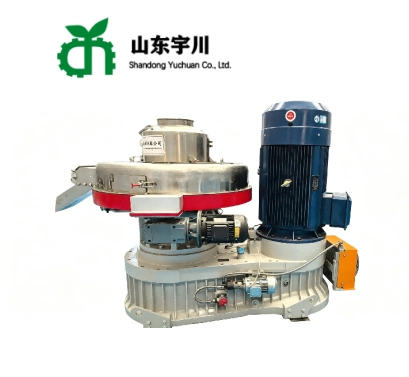

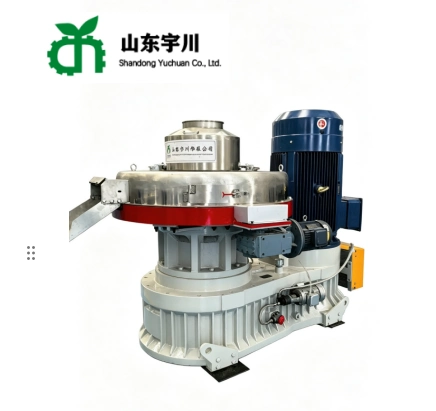

The Coconut Shell Pellet Mill is a ring-die biomass pelletizing machine specifically designed to address the challenges posed by coconut shells—namely their high hardness, high lignin content, and coarse fiber that is difficult to form into pellets. It is the primary equipment used for waste resource utilization in major coconut-producing countries in Southeast and South Asia. It can operate as a standalone unit or be integrated into a complete automated production line encompassing crushing, drying, pelletizing, cooling, and packaging.
Raw Material Matching Advantages
Addressing Raw Material Challenges: Coconut shells are high in crude fiber, hard, and have a wear coefficient far exceeding that of pine wood chips. This Coconut Shell Pellet Mill features enhanced wear resistance, making it better suited for coconut shells and common raw material blends such as coconut shell and palm shell mixtures.
Zero Waste of Byproducts: Byproducts from coconut oil processing—such as coconut shells, coconut husks, and broken coconut shells—can all be pelletized on-site, eliminating the need for open-air storage that leads to mold growth and addressing environmental concerns related to waste disposal.
3 Profitable Pellet End Uses
Biomass fuel pellets: Meet biomass pellet standards; essential for co-firing in heating boilers and power plants;
Activated carbon feedstock pellets (essential for the chemical industry): Coconut shell pellets are the premier raw material for water purification activated carbon and air adsorption carbon; water treatment plants and activated carbon processing plants worldwide purchase them in bulk year-round;
Horticultural growing media / organic fertilizer pellets (horticulture market): Coconut shell pellets are loose, well-aerated, and have low EC values. They serve as soilless growing media for orchids, succulents, and greenhouse vegetables and fruits. Large-scale seedling farms in Europe and the U.S. purchase them consistently, and in recent years, the new market segment for coconut shell pellets used as cat litter has experienced explosive growth.
Equipment Specifications
Modle | YC-560 | YC-700 | YC-850 | YC-850 |
Main motor power | 132KW | 160KW | 250KW | 280KW |
yield | 1.5-2T | 2-2.5T | 3.5T | 4T |
Company Qualifications
Our company
Yuchuan is a leading manufacturer specializing in drying and pelletizing equipment. We primarily manufacture drum dryers, biomass pelle mill, and supporting crushers. Leveraging our proprietary patented technologies and superior quality, we provide efficient, energy-saving, one-stop drying and pelletizing solutions for various wet materials, including wood chips, coal slurry, and sweet potato pulp. Our products are exported worldwide.
